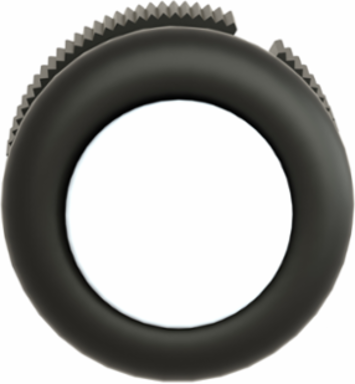

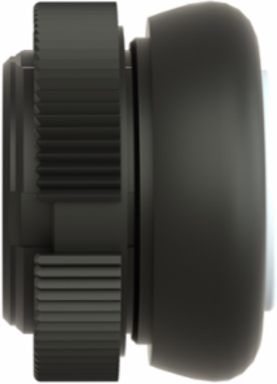

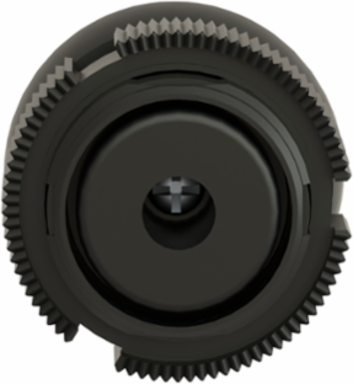

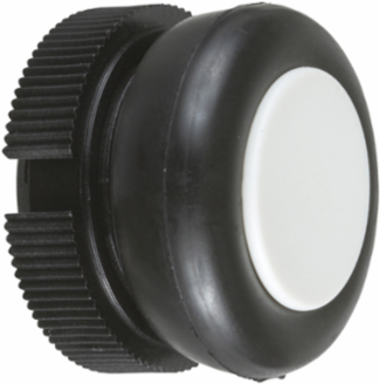

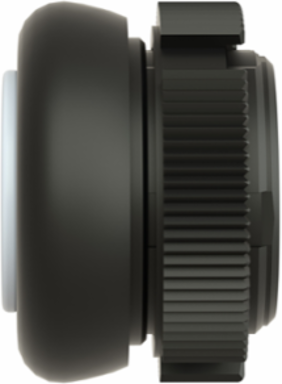

Schneider Electric XACA9411 Harmony XAC Push Button Head, Booted, White, IP65, -25 to 70 C
- MPN: XACA9411
- PPN: SCH-XACA9411
CAD
$11.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XAC, booted head for push buttons operates with spring return / impulse mechanism and uses front mounting. This white booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. The booted head prevents growth of bacteria in joints and gaps: ideal for high hygiene environments like food and beverage industry. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Designed with a high-durability silicone boot, this round push button head provides a tactile, responsive feel for operators wearing heavy work gloves. The rugged construction prevents dust, moisture, and debris from infiltrating the contact block, ensuring consistent machine activation even in high-cycle manufacturing or crane pendant applications.
- This operator head is strictly engineered to meet IP65 and NEMA 4/4X environmental standards, making it completely hose-down and corrosion-resistant. It offers a watertight seal that protects your internal electrical connections from water jets, oil, and non-corrosive coolants, drastically reducing the risk of short circuits in food processing or outdoor hoisting environments.
- Specifically designed for the Harmony XAC range of pendant control stations, this 22mm mounting head features a simple, snap-fit integration system. Whether you are replacing a worn actuator or building a custom overhead crane controller, the standardized footprint allows for rapid assembly and field serviceability without the need for specialized proprietary tools.
- The crisp, white finish provides a high-contrast visual cue for specific machine commands, such as "Up," "Start," or "Reset," depending on your custom legend plate. This clear color-coding improves workplace safety by reducing operator error and allows for instant identification in low-light industrial settings, keeping your workflow efficient and compliant with ergonomic safety guidelines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Czechia, Germany, France, Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA C22.2 No 14, IEC 60947-5-1, IEC 60204-32, UL 508 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0087622378 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.048031857 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Marking | unmarked |
| Operator Additional Information | booted |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XAC |
| Sale Per Indivisible Quantity | 10 |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Pep Code | ENVPEP0709005EN |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Energy Model - End Of Life [C1-c4] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Cap/Operator Or Lens Colour | white |
| Package Weight(Lbs) | 9.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0020292929, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0000483629, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Component Name | XACA |
| Mounting Location | front of enclosure |
| Overvoltage Category | class II conforming to IEC 61140 |
| Product Or Component Type | head for push-button |
| Returnability | Yes |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Vibration Resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Czech Republic |
| Energy Model - Use [B6] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Recyclability Potential In % | 32 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909989 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0588717506 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | XACA.. |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0709005EN |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0709005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for push-button |
|---|
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
