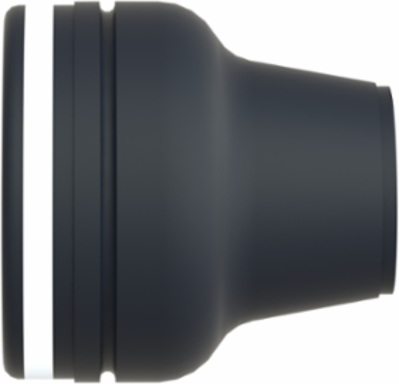

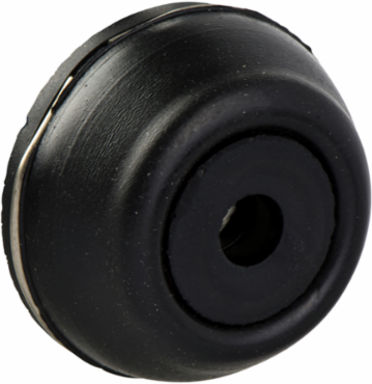

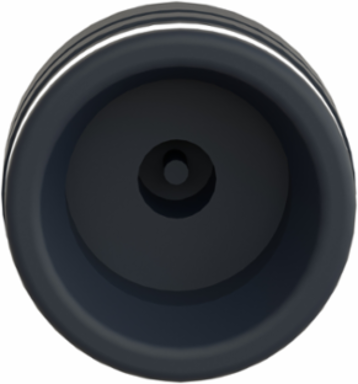

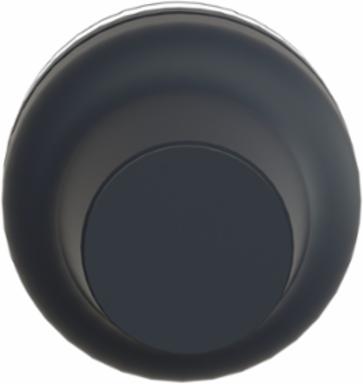

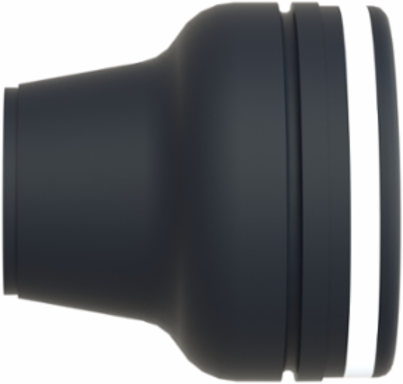

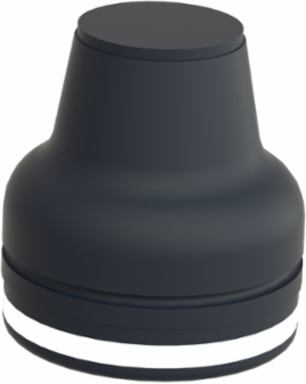

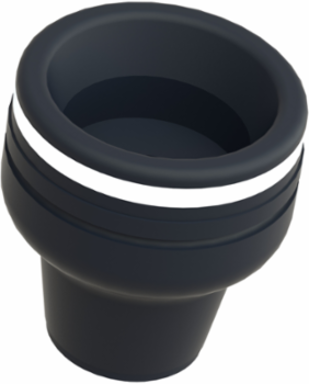

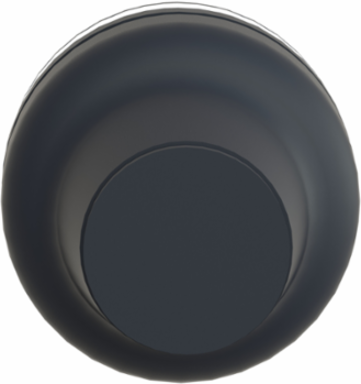

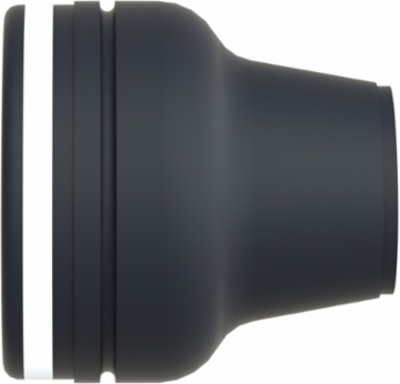

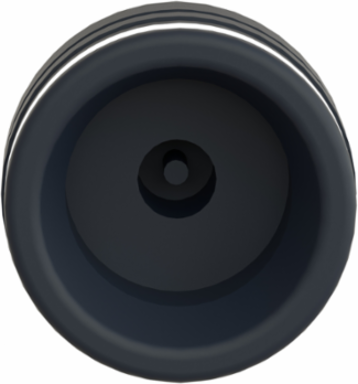

Schneider Electric XACB9212 Push Button Head, Black Booted, 16mm Travel, IP65 Waterproof
- MPN: XACB9212
- PPN: SCH-XACB9212
CAD
$11.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This black booted operator is a separate component for double insulated, XACB pendant control station. Its maximum operating travel is equal to 16mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Features

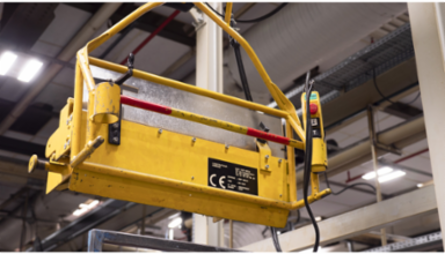

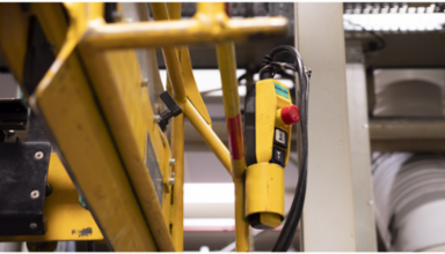

- Featuring a high-durability black chloroprene boot, this operator head is fully sealed to protect internal contacts from water jets, fine dust, and cutting oils. It achieves an IP65 rating when properly mounted, making it the ideal choice for heavy-duty industrial crane pendants, automotive lift controls, and outdoor hoist stations where environmental exposure is a daily reality.
- Designed with standard 22mm mounting dimensions, this head fits seamlessly into Schneider Electric Harmony XACA and XACB medium-to-heavy-duty pendant stations. This exact mechanical footprint allows facility electricians to replace worn or damaged button heads in minutes, minimizing maintenance downtime without requiring any modification to the enclosure shell.
- Utilizing a front-mounting snap-on clip design, this head securely locks into the pendant's internal plate without requiring specialized tools or complex disassembly. This streamlined mounting method allows panel builders and maintenance crews to dramatically accelerate field retrofits and simplify contact block configuration changes behind the button.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- IEC 60947-5-1, CSA C22.2 No 14
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0043811189
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0240159285
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Operating Travel
- 16 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XAC
- Sale Per Indivisible Quantity
- 10
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 0 kg CO2 eq.
- Pep Code
- ENVPEP0709005EN
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Energy Model - End Of Life [C1-c4]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 6.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0010146465, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000241814, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameXACB
Markingunmarked
Operator Additional Informationbooted
Product Or Component Typehead for push-button
ReturnabilityYes
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Czech Republic
Energy Model - Use [B6]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Recyclability Potential In %32
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- XESD1281, XESD1191, XESD1181, XESD1291
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP0709005EN
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.0294358753
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
