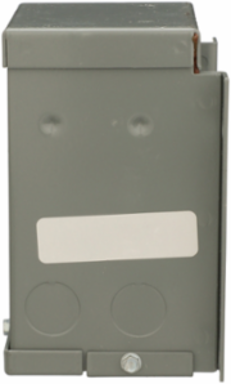

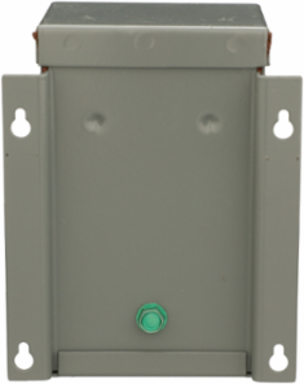

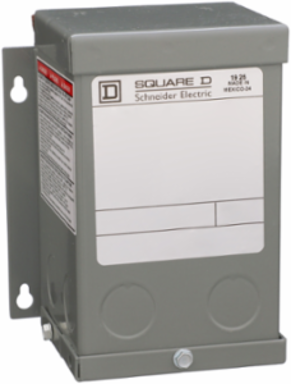

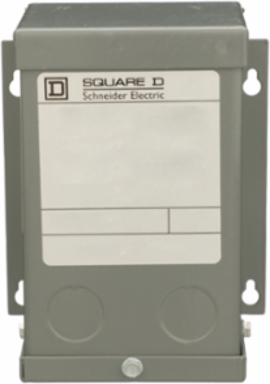

Square D 100SV46A Transformer, buck boost, encapsulated, 0.1kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 55C rise
- MPN: 100SV46A
- UPC: 785901069034
- PPN: SCH-100SV46A
CAD
$433.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A Buck and Boost Transformer can be configured into a autotransformer or isolating transformer. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for increased protection. SE leads the industry in suppling low voltage general purpose transformers and provide an 18 month warranty on their product. Their electrical characteristics have been vetted and verified to adhere to the data sheet by the Underwriters Laboratories (UL).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Rated Power In Va | 0.1 kVA |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Kit Identifier | N |
| Insulation Temperature | 105 °C |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1407010EN |
| Package Weight(Lbs) | 2.041 kg |
| Customs Code | 8504314065 |
| Local Publishable Date | 2025-11-13 |
|---|---|
| Stocking Flag | Y |
| Device Type | Transformer - dry |
| Traceability | No |
| Average Life Duration | 25 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Box Number | 2A |
| Primary Voltage | 120 x 240 V |
| Product Or Component Type | Buck and Boost Transformer |
| Secondary Voltage | 16/32 V |
| Temperature Rise | 55 °C |
| Nbr. Of Units In Pkg. | 1 |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1407010EN |
| Nema Degree Of Protection | NEMA 3R |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407010EN |
| Reach Free Shvc | Yes |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | Buck and Boost Transformer |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
