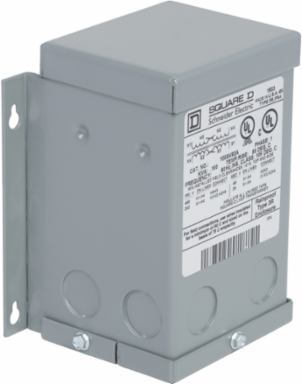

Square D 100SV82A Transformer, buck boost, encapsulated, 0.1kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 55C rise
Square D 100SV82A Transformer, buck boost, encapsulated, 0.1kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 55C rise
- MPN: 100SV82A
- UPC: 785901703044
- PPN: SCH-100SV82A
- UNSPSC: 39121025
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$606.97/ EA
Description
A Buck and Boost Transformer can be configured into a autotransformer or isolating transformer. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for increased protection. SE leads the industry in suppling low voltage general purpose transformers and provide an 18 month warranty on their product. Their electrical characteristics have been vetted and verified to adhere to the data sheet by the Underwriters Laboratories (UL).
Features
- Designed to supply 12/24, 16/32, or 24/48 circuits
- Dual primary and dual secondary isolation transformers
- Unique enclosures for each kVA size
- All possible solutions with pare numbers and wiring diagrams
- UL Listed and CSA certified
Specifications
Complementary Attributes
- Rated Power In VA
- 0.1 kVA
Important Information Attributes
- Local Data Status
- Publishable
- Device Type
- Transformer - dry
- Traceability
- No
- Average Life Duration
- 25 year(s)
- Scope Perimeter
- Outside of Europe
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Box Number
- 2A
- Package Weight Lbs
- 2.97 kg
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Medium Desc
- Transformer, buck boost, encapsulated, 0.1kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 55C rise
- Product Kit Identifier
- N
- Global Commercial Status
- End of commercialisation
Local Publishable Date2025-11-13
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardNo
Return IndicatorY
Insulation Temperature105 °C
Primary Voltage240 x 480 V
Product Or Component TypeBuck and Boost Transformer
Secondary Voltage24/48 V
Temperature Rise55 °C
Stocking FlagN
Pep CodeENVPEP1407010EN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407010EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Reach Free SHVCYes
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1407010EN
General Attributes
- Product Or Component Type
- Buck and Boost Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
