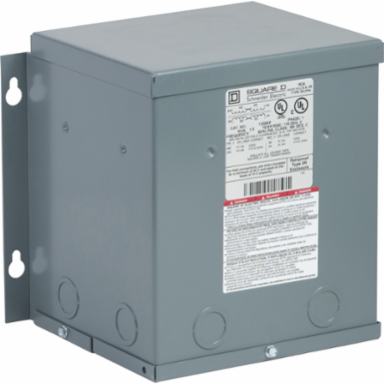

Square D 1.5S82F Buck & Boost Transformer, 1.5 kVA, 240x480V Primary, 24/48V Secondary, NEMA 3R
Square D 1.5S82F Buck & Boost Transformer, 1.5 kVA, 240x480V Primary, 24/48V Secondary, NEMA 3R
- MPN: 1.5S82F
- UPC: 785901575344
- PPN: SCH-1.5S82F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2563.26/ EA
Description
A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 120 x 240 V and a secondary voltage of 12/24 V. This product have a temperature rise of 55 °C. Dimensions for this product are 127 mm (H), 123 mm (W), 95 mm(D), and a weight of 6.2 lb(US).
Specifications
Specifications
- Primary Voltage
- 240 x 480 V
- Secondary Voltage
- 24/48 V
- Product Or Component Type
- Buck and Boost Transformer
- Box Number
- 8A
Nema Degree Of ProtectionNEMA 3R
Temperature Rise115 °C
Rated Power In Va1.5 kVA
Insulation Temperature180 °C
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407010
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
