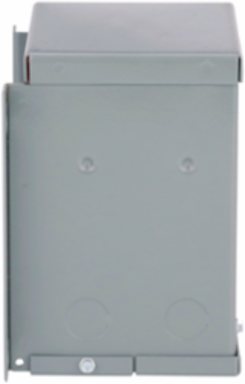

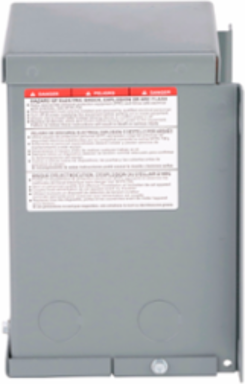

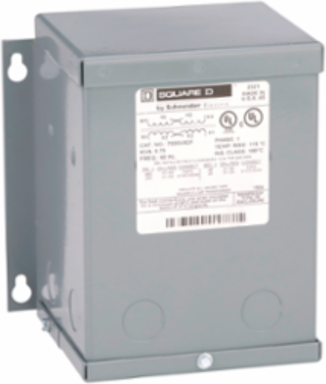

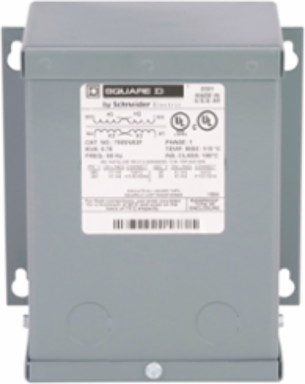

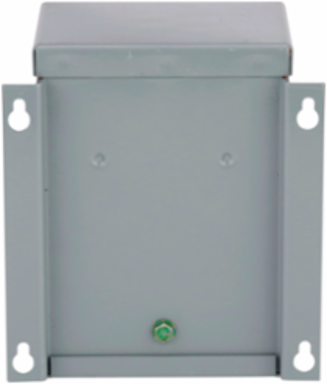

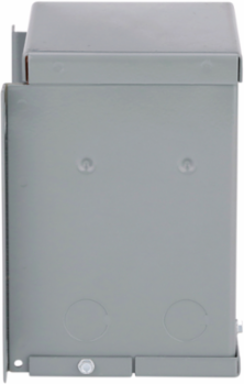

Square D 750SV82F Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise

Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
  • MPN: 750SV82F
  • UPC: 785901952640
  • PPN: SCH-750SV82F

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1784.23/ EA

Description

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 120 x 240 V and a secondary voltage of 24/48 V. This product have a temperature rise of 115 °C. Dimensions for this product are 157 mm (H), 157 mm (W), 119 mm(D), and a weight of 15.5 lb(US).

Specifications

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1407010
Pvc Free
Yes
Eu Rohs Directive
Compliant
Reach Free Of Svhc
Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Specifications

Primary Voltage
240 x 480 V
Secondary Voltage
24/48 V
Product Or Component Type
Buck and Boost Transformer
Box Number
6A
Nema Degree Of ProtectionNEMA 3R
Temperature Rise115 °C
Rated Power In Va0.75 kVA
Insulation Temperature180 °C

Contractual warranty

Warranty
18 months
