Fluke FLUKE 902 FC Fluke 902 FC True-RMS HVAC Clamp Meter
- MPN: FLUKE 902 FC
- UPC: 095969798341
- PPN: FLU-FLUKE-902 FC
CAD
$540.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

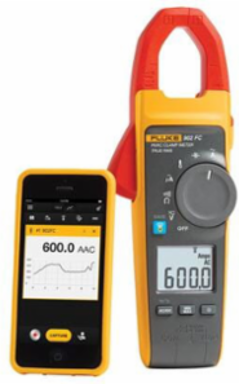

Fluke 902 FC True-RMS HVAC Clamp Meter
Documentation & Downloads
Specifications
Key Specifications
- A ac (via Jaw) Resolution
- 0.1 A
- A ac (via Jaw) Range
- 600.0 A
- V ac Resolution
- 0.1 V
- V ac Range
- 600.0 V
- V dc Accuracy
- 1.5% ±5 digits
- Ohms Resolution
- 0.1/1/10
- Ohms Range
- 600/6000/60.00 kΩ
- Capacitance Accuracy
- 1% ±4 digits
- µA Resolution
- 0.1 µA
- µA Range
- 200 µA
- Contact temperature Accuracy
- 1% ±8 digits
- Continuity beeper Beeper volume
- 75 dBA nom. 15 cm. from case front
- Maximum voltage between any terminal and earth ground
- 600 V: 600 V
- Temperature
- Operating: -10 °C to +50 °C (14 °F to +122 °F)Storage: -40 °C to +60 °C (-40 °F to +140 °F): Operating: -10 °C to +50 °C (14 °F to +122 °F)Storage: -40 °C to +60 °C (-40 °F to +140 °F)
- Altitude
- Operating: 3,000 m (9,842 ft)Storage: 12,000 m (39,370 ft): Operating: 3,000 m (9,842 ft)Storage: 12,000 m (39,370 ft)
- Weight (meter only) 419 g (15 oz)
- 419 g (15 oz)
- IP Rating
- IEC 60529: IP30, non-operating: IEC 60529: IP30, non-operating
- Electromagnetic Compatibility (EMC)
- International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.: International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
A ac (via Jaw) Accuracy2.0% ±5 digit (45-65 Hz) || 2.5% ±5 digit (65-400 Hz)
A ac (via Jaw)Crest Factor (50Hz or 60Hz): 2.5 MIN@220 A> 1.4 MIN@600 AAdd 2% for CF>400 A
V ac Accuracy1.5% ±5 digits
V dc Resolution0.1 V
V dc Range600.0 V
Ohms Accuracy1% ±5 digits
Capacitance Resolution0.1/1 µF
Capacitance Range100.0/1000 µF
µA Accuracy1% ±5 digits
Contact temperature Resolution0.1 C/F
Contact temperature Range-40 to 400 °C (-40 °F to 752 °F)
Continuity beeper On threshold<=30 Ω
Battery type2 AA alkaline batteries, NEDA 15A, IEC LR6: 2 AA alkaline batteries, NEDA 15A, IEC LR6
Operating humidityNon condensing (< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F)): Non condensing (< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F))
Dimensions230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in): 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
SafetyIEC 61010-1, Pollution Degree 2IEC 61010-2-032: CAT III 600 V / CAT IV 300 VIEC 61010-2-033: CAT III 600 V / CAT IV 300 V: IEC 61010-1, Pollution Degree 2IEC 61010-2-032: CAT III 600 V / CAT IV 300 VIEC 61010-2-033: CAT III 600 V / CAT IV 300 V
Radio Frequency Certification FCC ID:T68-FBLE IC:6627A-FBLEFCC ID:T68-FBLE IC:6627A-FBLE
Temperature coefficientsAdd 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C: Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
