Fluke FLK-a3004 FC Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter FLK-a3004 FC
- MPN: FLK-a3004 FC
- UPC: 095969785280
- PPN: FLU-FLK-A3004FC
CAD
$1234.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

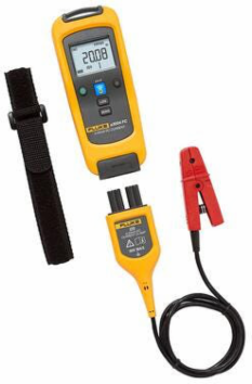

Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter FLK-a3004 FC
Features
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
- TiX560 and TiX520
- Measure 4 to 20 mA signals without "breaking the loop"
- Detachable clamp with extension cable for measurements in tight locations
- Use as a standalone meter or as part of the system
- Use the logging function for the recording and saving up to 65,000 measurements
- Fluke a3004 FC Wireless 4-20mA DC Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
- Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter main features include:
Documentation & Downloads
Specifications
Key Specifications
- LCD w/backlight
- 3 1/2 digits
- Battery type
- 2 AANEDA 15 AIEC LR6
- Memory
- Record up to 65,000 readings
- RF communication range
- Open air, unobstructed: Up to 20 mObstructed, sheetrock wall: Up to 6.5 mObstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
- Storage temperature
- -40°C to +60°C
- Operative humidity
- 90% at 35°C75% at 40°C45% at 50°C
- EMC
- EN 61326-1:2013
- Certifications
- CSA C-USCEFCC: T68-FBLEIC: 6627A-FBLE
- Jaw opening
- 4.5 mm
- Weight
- 0.299 kg (0.8 lb)
Log rate/Interval1 sec minimum/adjustable by PC or front pannel
Battery life45 hours
RF communications2.4 GHz ISM Band
Operating temperature-10°C to +50°C
Temperature coefficientAdd 0.1 X (specified accuracy) /°C (< 18°C or > 28°C)
AltitudeOperating 2,000 mStorage 12,000 m
Maximum voltage between terminal and earth ground (module)30 V DC or AC rms
Ingress Protection (IP) ratingIP42
Size (HxWxD)16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
