Weidmuller 7907490000 TS 35X15/LL 2M/ST/SZ
- MPN: 7907490000
- PPN: WDM-7907490000
CAD
$30.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

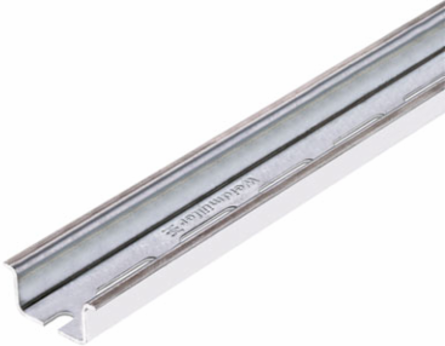

Rail, TS 35, TS 35 x 15, with slot, Steel, Sendzimir galvanised, chromium-plated
Documentation & Downloads
Specifications
Mounting Rail
| Drill-hole diameter | 5.2 mm |
|---|---|
| Slit gap | 11 mm |
| Slit width | 5.2 mm |
| Solder eyelet hole diameter (D) | 5.2 mm |
| Thickness | 1.5 mm |
| Short circuit strength corresponds to E-Cu wire | 25 mm² |
|---|---|
| Slit length | 25 mm |
| Slotted drill holes | Yes |
| Spacing of holes, centre-to-centre | 36 mm |
Classifications
| ETIM 6.0 | EC001285 |
|---|---|
| eClass 9.0 | 27-40-06-02 |
| eClass 10.0 | 27-40-06-02 |
| ETIM 7.0 | EC001285 |
|---|---|
| eClass 9.1 | 27-40-06-02 |
| UNSPSC | 30-21-18-01 |
Dimensions And Weights
| Width | 35 mm |
|---|---|
| Height | 35 mm |
| Depth | 15 mm |
| Net weight | 624 g |
| Width (inches) | 1.378 inch |
|---|---|
| Height (inches) | 1.378 inch |
| Depth (inches) | 0.591 inch |
Approvals
| ROHS | Conform |
|---|
