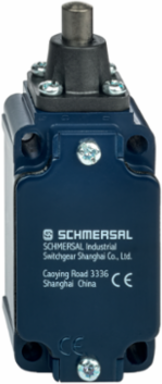

Schmersal 101161578 Safe Position Switch with Metal Enclosure, IP65/IP67, 3 NC Contacts
- MPN: 101161578
- PPN: SCM-101161578
CAD
$144.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safe Position Switch with Metal Enclosure, IP65/IP67, 3 NC Contacts
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit

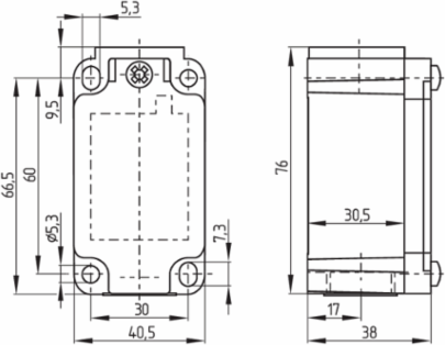

- 40,5 mm x 76 mm x 38 mm
- Actuator heads can be repositioned by 4 x 90°
- Design to EN 50041
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 230 VAC |
| Utilisation category DC-13 | 24 VDC |

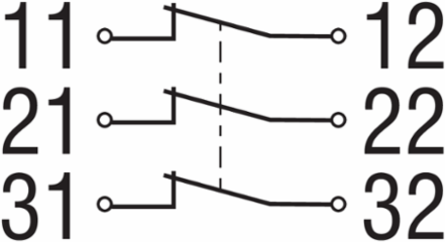

| Switching element | Opener (NC) |
| Bounce duration, maximum | 2 ms |
| Material of the contacts, electrical | Silver |
| Required rated short-circuit current | 1,000 A |
|---|---|
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 4 A |
| Switching principle | Slow action |
| Switching frequency | 5,000 /h |
Mechanical data - Dimensions
| Length of sensor | 38 mm |
|---|---|
| Height of sensor | 103.5 mm |
| Width of sensor | 40.5 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 20,000,000 Operations |
|---|
General data - Features
| Safety functions | Yes |
|---|
| Number of safety contacts | 3 |
|---|
General data
| Housing construction form | Norm construction design |
|---|---|
| Enclosure material | Light alloy die-casting |
| Gross weight | 180 g |
| Actuator type to EN 50041 | B |
|---|---|
| Enclosure coating material | painted |
Safety classification
| Standards | BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP65 | IP67 |
|---|
| Ambient temperature | -30 ... +80 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm² |
| Cable section, minimum | 0.75 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data

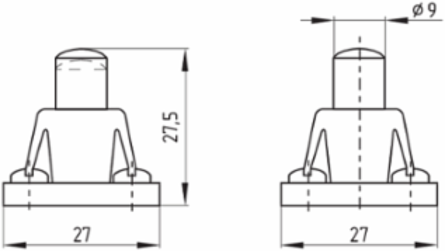

| Actuating element | Plunger |
|---|---|
| Actuating force, minimum | 17 N |
| Note (Switchover time) | Switchover time in accordance with actuating speed |
| Mechanical life, minimum | 30,000,000 Operations |
|---|---|
| Actuating speed, maximum | 0.5 m/s |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
