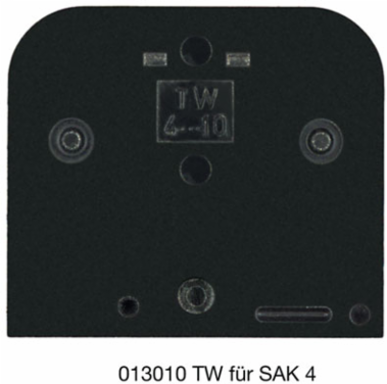

Weidmuller 0130100000 TW SAK4-10 EP/SW
- MPN: 0130100000
- PPN: WDM-0130100000
CAD
$59.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Seperation plate, 2.53 mm, black, Direct mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2.53 mm
- Height
- 50 mm
- Depth
- 44 mm
- Net weight
- 9.1 g
Width (inches)0.1 inch
Height (inches)1.969 inch
Depth (inches)1.732 inch
Additional Technical Data
- Installation advice
- Direct mounting
Snap-onNo
Material Data
- Material
- Epoxy resin, EP
- UL 94 flammability rating
- V-0
Colourblack
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27
System Specifications
- Version
- Intermediate plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 160 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
