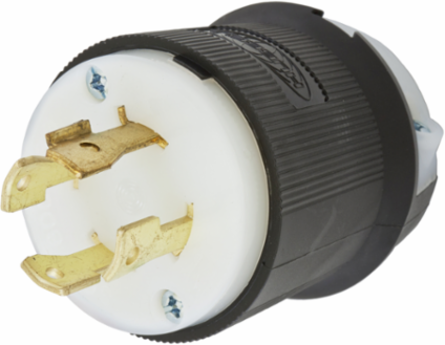

Hubbell Wiring Device-Kellems HBL2741 Twist-Lock Male Plug 30A 3-Phase 600V 3-Pole 4-Wire
- MPN: HBL2741
- UPC: 783585039374
- PPN: HBL-HBL2741
- UNSPSC: 39121402
CAD
$72.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 600V AC, 3-Pole 4-Wire Grounding, L17-30P, Screw Terminal, Black and White
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Number of Poles | 3-Pole |
| NEMA Rating | L17-30P |
| Wire Size | #16 AWG to #8 AWG |
| Weight | 0.30 lb |
| Connectivity | Pressure Terminal Screws |
| Operating Temperature | -40 C to 75 C |
| Terminal Type | Screw Terminal |
| Country of Origin | US |
| Voltage | 600 V AC, 3-Phase |
|---|---|
| Number of Wires | 4-Wire |
| Cord Range | 0.350 in - 1.150 in (9-29 mm) |
| Dimensions | 2.33 in x 2.33 in x 2.75 in |
| Material | Nylon |
| Dielectric Voltage | 2,000 V minimum |
| Grounding | Yes |
| Compliance | UL Listed, CSA Certified, RoHS Compliant, Buy American Compliant |
| Color | Black and White |
