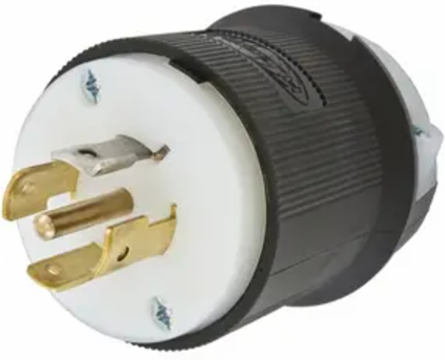

Hubbell Wiring Device-Kellems HBL2511 Twist-Lock Male Plug 20A 3-Phase 120/208VAC, 4-Pole, Nylon
Hubbell Wiring Device-Kellems HBL2511 Twist-Lock Male Plug 20A 3-Phase 120/208VAC, 4-Pole, Nylon
- MPN: HBL2511
- UPC: 783585038537
- PPN: HBL-HBL2511
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$64.58/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 3-Phase WYE 120/208VAC, 4-Pole 5-Wire Grounding, NEMA L21-20P, Screw Terminal, Black and White Nylon.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2511 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Current / Amperage Rating
- 20 A
- Height
- 2.75 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L21-20P
- Number of Wires
- 5-Wire
- Size
- 2.33 in x 2.33 in x 2.75 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 3 Phase WYE 120/208 VAC
- Voltage Rating Description
- 3 Phase WYE 120/208 VAC
- Width
- 2.33 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L21-20P
- Number Of Wires
- 5-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2511
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585038536
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Country of OriginUnited States
Dimensions2.33 in x 2.33 in x 2.75 in
Horsepower - Maximum2
Length2.33 in
Amperage Rating20 A
ColorNoir, blanc
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles4-Pole
Phase3 Phase WYE
Special FeaturesStandard Product
TypePlugs
Wire Size#16 AWG to #8 AWG
Weight0.3 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard Sized
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG PLUG, 20A 3PH 120/208V, L21-20P, B/W
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialNylon
BOX SIZE8.000x12.500x9.000 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585038537
Case Weight5.422 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1162.800 lb.
Certifications
- EU RoHS Indicator
- Yes
