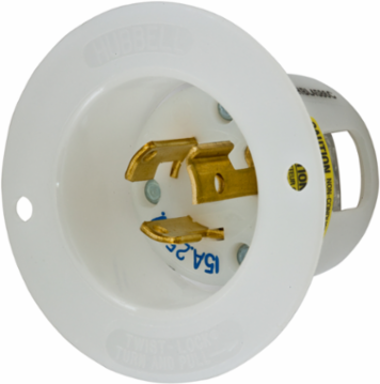

Hubbell Wiring Device-Kellems HBL4586C Industrial Twist-Lock Flanged Inlet, 15A 250V, L6-15P, 2.56 Inch
- MPN: HBL4586C
- UPC: 783585170206
- PPN: HBL-HBL4586C
- UNSPSC: 39121406
CAD
$38.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15P, Screw Terminal, Nylon casing, Back wired, White.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.56 in x 2.56 in x 1.72 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 15 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L6-15P
- Number of Wires
- 3-Wire
- Size
- 2.56 in x 2.56 in x 1.72 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.10 lb.
- Engineering Drawing 1 Display Text
- HBL4586C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLT, 15A 250V, L6-15P, WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.786 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 664.200 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.72 in
Length2.56 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating250 V
Voltage Rating Description250 V
Width2.56 in
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
ConnectivityScrew Terminals
Nema RatingL6-15P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4586C
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE4.100x13.400x2.800 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585170206
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585170205
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
