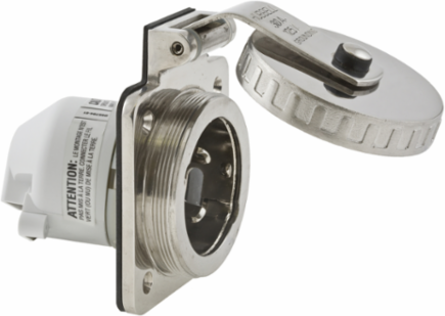

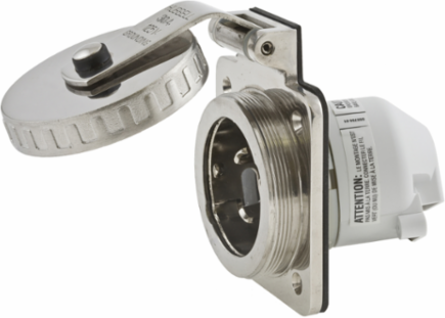

Hubbell Wiring Device-Kellems HBL303SS Marine Grade 30A 125V Twist-Lock Hull Inlet, 2-Pole 3-Wire Grounding, Stainless Steel
- MPN: HBL303SS
- UPC: 783585040523
- PPN: HBL-HBL303SS
- UNSPSC: 39121406
CAD
$287.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Hull Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Stainless Steel
Features
- New quick connect with backwards compatibility
- Self-closing Cover
- Corrossion Resistant Base and Cover
- Threaded Base for making a watertight seal
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- 30-Series Marine Electrical Products
- Country of Origin
- United States
- Width
- 5.140 in
- Performance
- Environmental - Moisture Resistance - IP56 Suitability
- Amperage Rating
- 30 A
- Color
- Stainless
- Environmental Conditions
- Watertight
- NEMA Rating
- L5-30P
- Number of Wires
- 3-Wire Grounding
- Standard
- UL Listed
- Voltage Rating
- 125 VAC
- Wire Size
- #12 AWG to #10 AWG
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL303SSBL
- Material - Mounting Hardware
- Screw Hull Mount
- Material
- Thermoplastic
- BOX SIZE
- 6.300x14.700x9.600 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585040523
- Case Weight
- 5.356 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 859.950 lb.
- NAICS Code
- 335931A102
General Literature Asset 2 Display TextHubbell Marine Full Line Catalog
Current / Amperage Rating30 A
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ApplicationMarine Wiring Devices
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage3750
ConnectivityPressure Terminal Screws
Nema RatingL5-30P
Number Of Wires3-Wire Grounding
Description - InvoiceMARINE HULL INLET, 30A 125V, SS
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.95 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585040522
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
