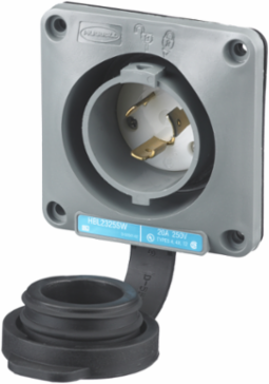

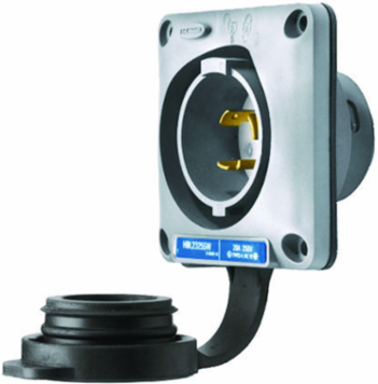

Hubbell Wiring Device-Kellems HBL2325SW Locking Device Twist-Lock Flanged Inlet, 20A 250V, 3.75 Inch, Gray
- MPN: HBL2325SW
- UPC: 783585231143
- PPN: HBL-HBL2325SW
- UNSPSC: 39121406
CAD
$113.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Gray.
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.75 in x 3.75 in x 2.28 in
- Horsepower - Maximum
- 2
- Length
- 3.75 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Width
- 3.75 in
- General Literature Asset 1 Display Text
- Entertainment Product Solution Guide
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG WT S/SHRD FLG-INLT, 20A 250V, L6-20P
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 4.700x9.700x9.800 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585231143
- Case Weight
- 3.300 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height2.28 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorGray, White
Environmental ConditionsWatertight
NEMA RatingL6-20P
Number of Wires3-Wire
Size3.75 in x 3.75 in x 2.28 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.60 lb.
Engineering Drawing 1 Display TextHBL2325SW AutoCAD Drawing
General Literature Asset 2 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
ConnectivityScrew Terminals
Nema RatingL6-20P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.65 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
NAICS Code335931A102
