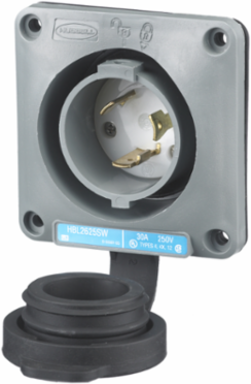

Hubbell Wiring Device-Kellems HBL2625SW Twist-Lock Watertight Flanged Inlet, 30A, 250V AC, 2-Pole, Gray Valox Housing
- MPN: HBL2625SW
- UPC: 783585231723
- PPN: HBL-HBL2625SW
- UNSPSC: 39121406
CAD
$222.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud® Flanged Inlet, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30P, Gray Valox® housing and flange
Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 2-Pole
- Device Type
- Flanged Inlet
- Weight
- 0.60 lb
- Mounting Type
- Screw Mounting
- Housing Material
- Gray Valox (PBT)
- Blades Material
- Brass
- Assembly Screws Material
- Stainless Steel
- Operating Temperature
- -40 C to 75 C (maximum continuous)
- Current Interrupting
- Certified for full rated current
- Moisture Resistance
- Type 4, 4X, 12, IP66
- Listings
- UL 498; CSA C22.2 No.42; UL Listed; CSA Certified to Type 4, 4X and 12
- Country of Origin
- US
Voltage250 V AC
Number of Wires3-Wire Grounding
Dimensions3.75 in x 3.75 in x 2.27 in
Size3.75 in x 3.75 in x 2.27 in
MaterialThermoplastic
Terminal Retainer MaterialClear polycarbonate
Terminal Screws Material#10-32 Brass (Phillips / Slotted / Robertson)
Mounting Screw MaterialStainless Steel
Dielectric Voltage2,000 V minimum
NEMA RatingL6-30P
Flammability RatingV0 per UL94 or CSA 22.2 No.0.17
Standards ComplianceUL Listed, CSA Certified to Type 4, 4X, and 12; RoHS Compliant
ColorGray
