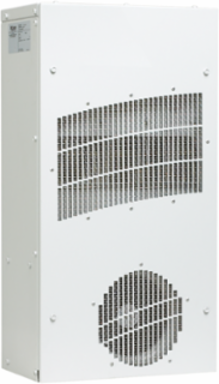

nVent Hoffman TX231424100 ClimaGuard Air-to-Air Heat Exchanger 23 Inch x 12 Inch x 7.1 Inch, 14 W
- MPN: TX231424100
- UPC: 783510252526
- PPN: HOF-TX231424100
- UNSPSC: 40101802
CAD
$3684.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX231424100 is rated for X23 14w/F 24v
Features
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Operating Temperature
- -40
- Product Family
- ClimaGuard
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Weight
- 32
- Max Watts Per °C
- 25
- Temperature Range
- -40 to 149 deg F
- Housing Material
- Mild Steel
- Dimensions
- 23 x 12 x 7.1 in
Height (H)584
Depth (D)180
Protection RatingNEMA Type 4
MaterialMild Steel
ColorLight Gray
NEMA Rating4 Watertight
Max Watts Per °F14
Thickness (T)1.21
Power Consumption14 W per deg F max
MountingSurface Mounted
