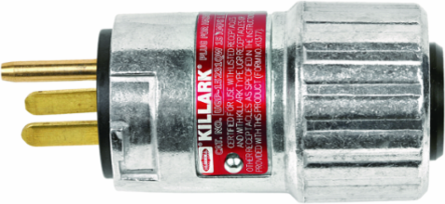

Killark UGP-20231QW Aluminum 20 Amp 125VAC NEMA 5-20P Plug, 2 Poles, Quick Wiring, 6.625 Inch
- MPN: UGP-20231QW
- UPC: 783936076669
- PPN: HBL-UGP-20231QW
- UNSPSC: 39121402
CAD
$236.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
UGP Series - Aluminum 20 Amp 125VAC Interchangeable Blade Style Plug With Quick Wiring - NEMA Configuration 5-20P
Features
- Factory sealed chamber in UGR receptacle contains switch’s arcing components.
- Spring loaded receptacle cover closes when plug is removed.
- Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- ACCEPTOR® plugs conform to NEMA configurations, while it's “turn to engage” feature locks in plug and can be used to prevent accidental disengagement of critical equipment.
- Plugs for use with type S/SO/ST/STO heavy duty cord.
- ACCEPTOR plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system's "turn to engage" feature locks in plug and can be used to prevent accidental disengagement of cr
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
- Length
- 6.625 in
- Application
- Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, and indoor or outdoor locations
- NEMA Rating
- 3, 4, 4X
- Number of Wires
- 3
- Special Features
- ACCEPTOR plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system's "turn to engage" feature locks in plug and can be used to prevent accidental disengagement of cr
- Wire Size
- #10 AWG, #12 AWG, or #14 AWG
- Engineering Drawing 1 Display Text
- UGP-20231QW Engineering Drawing
- Number Of Poles
- 2
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 20A PLUG 5-20P QUICK WIRE
- Harmonization Code
- 8536694020
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D35D261
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- UGP Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.625 in x 2.375 in x 1.875 in
Height1.875 in
Amperage Rating20 A
ColorGray
Number of Poles2
Size6.625 in x 2.375 in x 1.875 in
TypeStraight Blade
Width2.375 in
Nema Rating3, 4, 4X
Number Of Wires3
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.4
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936076669
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Contact Manufacturer
