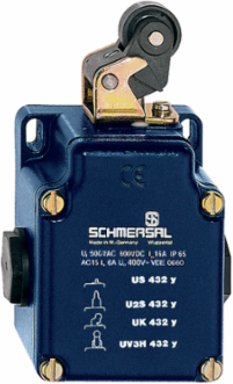

Schmersal 101166388 UK 432Y-M20 Position Switch, 62 mm x 80 mm x 50 mm, IP65, Metal Enclosure
Schmersal 101166388 UK 432Y-M20 Position Switch, 62 mm x 80 mm x 50 mm, IP65, Metal Enclosure
- MPN: 101166388
- PPN: SCM-101166388
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$357.65/ EA
Description
UK 432Y-M20 Position Switch, 62 mm x 80 mm x 50 mm, IP65, Metal Enclosure
Features
- Metal enclosure

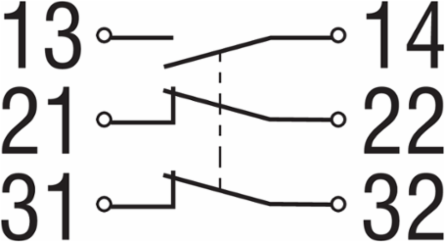

- 2 Contacts

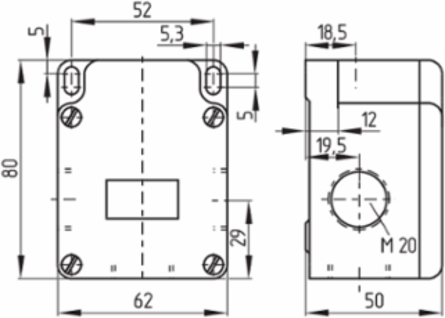

- 62 mm x 80 mm x 50 mm ( basic component)

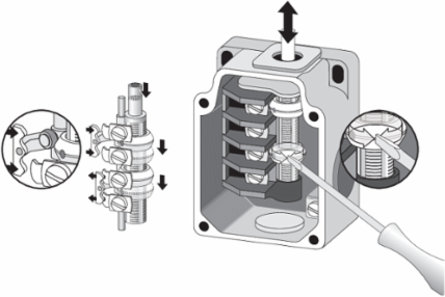

- Switching points and contact function adjustable
- 3 cable entries M 20 x 1.5
- Actuator heads can be repositioned by 4 x 90°
Specifications
Electrical data
- Thermal test current
- 16 A
- Switching principle
- Slow action
Switching elementOpener (NC)
Material of the contacts, electricalSilver
Note
- Note (General)
- Type of contact and switching points can be factory set to order. | Actuation from the right should be avoided, since this reduces the mechanical life of the position switch.
Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 118 mm
- Diameter of Castor
- 20 mm
Width of sensor62 mm
Width of Castor8.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 2
General data
- Standards
- EN IEC 60947-5-1
- Slide form
- Castor
- Enclosure coating material
- painted
Working principlemechanical
Enclosure materialLight alloy die-casting
Gross weight340 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-20 ... +60 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
- Wire cross-section
- 13 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element

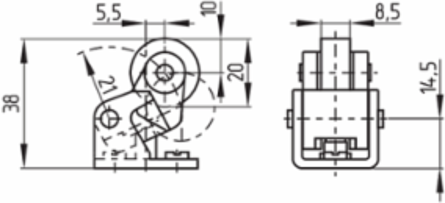

- Offset roller lever
- Mechanical life, minimum
- 10,000,000 Operations
- Actuating angle, from right of switch axis
- 30 °
- Actuating speed, minimum
- 1 mm/min
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
Roller materialPlastic
Actuating angle, from left of switch axis45 °
Contact opening2 x 1.5 mm
Actuating speed, maximum0.5 m/s
Approvals - Standards
- Certificates
- cULus
