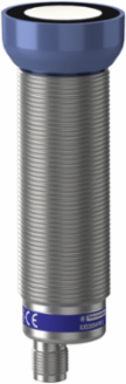

Telemecanique Sensors XXS30S4VM12 Ultrasonic sensors XX, ultrasonic sensor, stainless steel, cylindrical M30, straight, 4 m, 0...10 V
Telemecanique Sensors XXS30S4VM12 Ultrasonic sensors XX, ultrasonic sensor, stainless steel, cylindrical M30, straight, 4 m, 0...10 V
- MPN: XXS30S4VM12
- PPN: TES-XXS30S4VM12
- UNSPSC: 41111960
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$910.35/ EA
Specifications
Environment
- Product Certifications
- cULus || E2 || EAC || RCM || Ecolab
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1803029EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Maximum Switching Capacity
- >= 1 kOhm overload and short-circuit protection
- Height
- 30 mm
- Status Led
- output state 1 LED yellow) || echo state 1 LED green)
- Transmission Frequency
- 80 kHz
- Threaded Length
- 74.7 mm
- Blind Zone
- 420-420 mm
- Current Consumption
- 65 mA
- Function Available
- with synchronisation mode || software configurable
- Maximum Delay First Up
- 500 ms
- Enclosure Material
- stainless steel 316L
- Front Material
- epoxy || rubber || resin
Repeat Accuracy0.1 %
Minimum Size Of Detected Objectcylinder diameter 1 mm 1.8 m
Setting-Upteach mode || configurator software
[Sa] Assured Operating Distance0.420-4 m teach mode)
MarkingCE
Net Weight0.2 kg
Deviation Angle From 90° Of Object To Be Detected-10-10 °
Maximum Delay Recovery400 ms
Supply Voltage Limits14-30 V DC
Width40 mm
Depth119 mm
Specifications
- [Us] Rated Supply Voltage
- 24 V DC reverse polarity protection
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.420-4 m
- Wiring Technique
- 5-wire
- Series Name
- general purpose
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M30
- Analogue Output Function
- 0...10 V
Type Of Output Signalanalogue
Sensor NameXXS
Materialmetal
Ip Degree Of ProtectionIP65 conforming to IEC 60529 || IP67
Detection Systemdiffuse
Electrical Connectionmale connector M12 5 pins
[Sn] Nominal Sensing Distance4-4 m adjustable with remote teach push-button || 4-4 m software with kit
