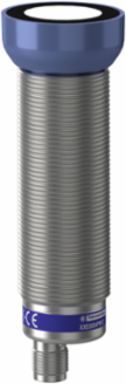

Telemecanique Sensors XXS30S4PM12 Ultrasonic sensors XX, ultrasonic sensor, stainless steel, cylindrical M30, straight, 4 m, PNP
- MPN: XXS30S4PM12
- PPN: TES-XXS30S4PM12
- UNSPSC: 41111960
CAD
$828.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor, stainless steel, cylindrical M30, straight, 4 m, PNP
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.420-4 m
- Wiring Technique
- 5-wire
- Series Name
- general purpose
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M30
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXXS
Materialmetal
Ip Degree Of ProtectionIP65 conforming to IEC 60529 || IP67
Detection Systemdiffuse
Electrical Connectionmale connector M12 5 pins
[Sn] Nominal Sensing Distance4-4 m adjustable with remote teach push-button || 4-4 m software with kit
Complementary
- Repeat Accuracy
- 0.1 %
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Switching Frequency
- 2.7 Hz
- Maximum Voltage Drop
- 2 V
- Setting-Up
- teach mode || configurator software
- [Sa] Assured Operating Distance
- 0.420-4 m teach mode)
- Marking
- CE
- Net Weight
- 0.2 kg
- Deviation Angle From 90° Of Object To Be Detected
- -10-10 °
- Maximum Delay Recovery
- 180 ms
- Supply Voltage Limits
- 10-30 V DC
- Width
- 40 mm
- Depth
- 119 mm
Height30 mm
Minimum Size Of Detected Objectcylinder diameter 1 mm 1.8 m
Maximum Delay Response180 ms
Status Ledoutput state 1 LED yellow) || echo state 1 LED green)
Transmission Frequency80 kHz
Threaded Length74.7 mm
Blind Zone420-420 mm
Current Consumption65 mA
Function Availablewith synchronisation mode || software configurable
Maximum Delay First Up250 ms
Enclosure Materialstainless steel 316L
Front Materialepoxy || rubber || resin
Environment
- Product Certifications
- cULus || E2 || EAC || RCM || Ecolab
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1803029EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
