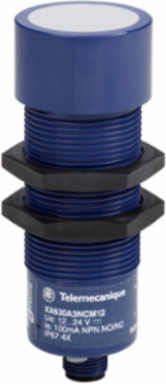

Telemecanique Sensors XX630A2PC000M12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, 2 m, 12 TO 24 V
- MPN: XX630A2PC000M12
- PPN: TES-XX630A2PC000M12
- UNSPSC: 39122230
CAD
$1193.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, 2 m, 12 TO 24 V
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Type | PNP |
| Discrete Output Function | 1 NC + 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M30 |
| [Sn] Nominal Sensing Distance | 2-2 m adjustable with teach push-button |
| Material | plastic |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Series Name | general purpose |
|---|---|
| Beam Angle | 10 ° |
| Type Of Output Signal | discrete |
| Detection System | diffuse |
| Electrical Connection | male connector M12 4 pins |
| Sensor Name | XX6 |
| [Sd] Sensing Range | 0.12-2 m |
| Wiring Technique | 4-wire |
Complementary
| Deviation Angle From 90° Of Object To Be Detected | -7-7 ° |
|---|---|
| Repeat Accuracy | 0.9 % |
| Height | 35 mm |
| Minimum Size Of Detected Object | cylinder diameter 1.6 mm 0.635 m |
| Maximum Delay Response | 25 ms |
| Maximum Delay First Up | 720 ms |
| Status Led | setting-up assistance 1 LED green/red (flashing)) |
| Transmission Frequency | 200 kHz |
| Enclosure Material | ULTEM |
| Marking | CE |
| Front Material | silicone |
| Blind Zone | 0-120 mm |
| Current Consumption | 100 mA |
| Thread Type | M30 x 1.5 |
|---|---|
| Function Available | without synchronisation mode |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Switching Frequency | <= 16 Hz |
| Maximum Delay Recovery | 20 ms |
| Maximum Voltage Drop | 1 V |
| Supply Voltage Limits | 10-28 V DC |
| [Sa] Assured Operating Distance | 0.12-2 m teach mode) |
| Threaded Length | 45 mm |
| Width | 35 mm |
| Depth | 85 mm |
| Net Weight | 0.091 kg |
| Maximum Differential Travel | 2.5 mm |
Environment
| Product Certifications | cCSAus || UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Standards | IEC 60947-5-2 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
Offer Sustainability
| Circularity Profile | ENVEOLI111225EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
