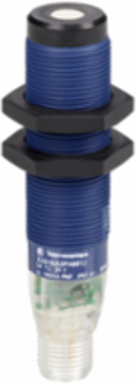

Telemecanique Sensors XX918A1A1L2 Ultrasonic sensors XX, ultrasonic sensor, 24 VDC 0 10 V +options
- MPN: XX918A1A1L2
- PPN: TES-XX918A1A1L2
- UNSPSC: 39122230
CAD
$1453.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor, 24 VDC 0 10 V +options
Documentation & Downloads
Specifications
Key Specifications
| Beam Angle | 10 ° |
|---|---|
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| Sensor Type | ultrasonic sensor |
| Sensor Design | Ø 18 mm |
| [Sd] Sensing Range | 69.9-101.6 mm |
| [Us] Rated Supply Voltage | 15...24 V DC reverse polarity protection |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Type Of Output Signal | analogue |
|---|---|
| Product Specific Application | analog output |
| Electrical Connection | cable, 2 m |
| Sensor Name | XX9 |
| Material | PBT (polybutylene terephthalate) |
| Wiring Technique | 4-wire |
Complementary
| Iso Thread | M18 x 1 |
|---|---|
| Type Of Sensing Window | fixed |
| Height | 18 mm |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Maximum Delay Recovery | 1000 ms |
| Supply Voltage Limits | 10-28 V DC |
| [Sa] Assured Operating Distance | 3.18-228.6 mm no teach mode) |
| Marking | CE |
| Front Material | silicone |
| Cad Overall Width | 18 mm |
| Length | 64.77 mm |
| Net Weight | 0.17 kg |
| Cad Overall Height | 18 mm |
| [Sn] Nominal Sensing Distance | 101.6 mm |
| Maximum Switching Capacity | 1 kOhm overload and short-circuit protection |
|---|---|
| Repeat Accuracy | 1.27 % |
| Minimum Size Of Detected Object | cylinder diameter 1.6 mm - up to 63.5 mm sensing distance |
| Maximum Delay Response | 2.5 ms |
| Status Led | setting-up assistance 2 LEDs green/yellow (flashing)) || output state 2 LEDs green/yellow) |
| Transmission Frequency | 500 kHz |
| Enclosure Material | ULTEM |
| Width | 18 mm |
| Depth | 18 mm |
| Cad Overall Depth | 18 mm |
| Sensing Window | 69.9 |
| Analogue Output Range | 0...10 V inverse |
| Current Consumption | 50 mA |
| Blind Zone | 51 mm |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Standards | IEC 60947-5-2 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-100 °C |
| Nema Degree Of Protection | NEMA 4X indoor use only) |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111225EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
