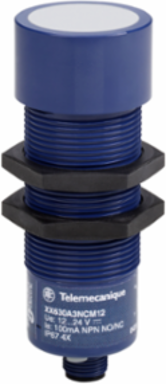

Telemecanique Sensors XX230A12NA00M12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, 2 levels, Sn 1 m, 2 NO, M12
- MPN: XX230A12NA00M12
- PPN: TES-XX230A12NA00M12
- UNSPSC: 39122230
CAD
$670.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This product is designed for monitoring 2 levels, with 2 independent outputs. It features a cylindrical plastic case, diameter 30mm and an M12, 4-pin connector. DC supply, NO function, NPN/NPN solid-state outputs, diffuse detection system. Its sensing distance is 1m, adjustable using teach button on the sensor.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 2 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.051-0.991 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M30
Discrete Output TypeNPN
Type Of Output Signaldiscrete
Sensor NameXX2
Materialplastic
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle10 °
Product Specific Applicationfor 2 levels monitoring
Electrical Connectionmale connector M12 4 pins
[Sn] Nominal Sensing Distance1-1 m adjustable with teach push-button
Complementary
- Repeat Accuracy
- 0.9 %
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Maximum Delay Response
- 150 ms
- Status Led
- output state 1 LED green/red (flashing)) || setting-up assistance 1 LED green/red (flashing)) || distance indication 1 LED yellow)
- [Sa] Assured Operating Distance
- 0.051-0.991 m teach mode)
- Marking
- CE
- Net Weight
- 0.091 kg
- Maximum Differential Travel
- 2.5 mm
- Thread Type
- M30 x 1.5
- Maximum Delay Recovery
- 1000 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 35 mm
- Depth
- 85 mm
Height35 mm
Minimum Size Of Detected Objectcylinder diameter 1.6 mm 0.635 m
Maximum Voltage Drop1 V
Transmission Frequency200 kHz
Threaded Length45 mm
Blind Zone0-51 mm
Current Consumption100 mA
Deviation Angle From 90° Of Object To Be Detected-10-10 °
Function Availablewithout synchronisation mode
Maximum Delay First Up1000 ms
Enclosure MaterialULTEM
Front Materialsilicone
Environment
- Product Certifications
- cCSAus || UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -10-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-50 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
