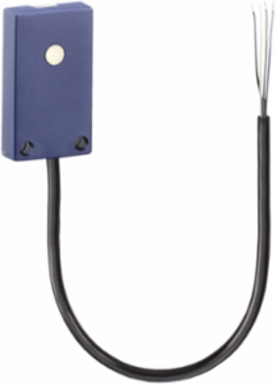

Telemecanique Sensors SC300A500FP Hyde Park, Ultrasonic sensor, discrete, flat profile, 12 24 V DC

This product is part of the Hyde Park Ultrasonic Sensors range, an offer of ultrasonic sensors. This ultrasonic sensor is a self-contained, pulse-echo, proximity sensing device that both transmits and receives sonic energy. It offers discrete output signal and standard functionality. This flat profile sensor with 0.7mm maximum differential travel. Operating on 12V to 24V DC and employing the latest piezoelectric and microprocessor technology. Supports 4-wire wiring technique and furnished with 3m cable for electrical connection. It is a flat form designed sensor with configurable sensing window. The blue enclosure is made of ULTEM with glass epoxy front part. It is available in size of 33.02mm (L) x 19.05mm (W) x 7.62mm (D) and weighs 0.12kg. The ultrasonic sensor is suitable for packaging, automotive, paper industry, machine tool, assembly, water treatment, food and beverage processing etc. It is an IP67 and NEMA 4X rated product. This product is certified by CE and UL. Detection of any material, irrespective of color, light ambiance at the same distance, without adjustment or correction factor. The SUPERPROX+ allows in-the-field programming of SUPERPROX sensors by the user. The SC prefix designator has been assigned in order to differentiate this field programmable sensor from the factory configured sensor designated with an SM. Detection of any material, irrespective of colour, light ambiance at the same distance, without adjustment or correction factor. The SUPERPROX+ allows in-the-field programming of SUPERPROX sensors by the user. The SC prefix designator has been assigned in order to differentiate this field programmable sensor from the factory configured sensor designated with an SM.
