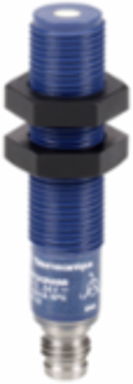

Telemecanique Sensors SM350A22800 Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC

This product is part of the Hyde Park Ultrasonic Sensors range, an offer of ultrasonic sensors. This ultrasonic sensor is a self-contained, pulse-echo, proximity sensing device that both transmits and receives sonic energy. It offers PNP/NPN discrete output signal and normally opened output. This 12mm barrel sensor transmits and receives energy of 6.3mm to 50.8mm sensing range. Operating on 12V to 24V DC and employing the latest piezoelectric and microprocessor technology. Supports 4-wire wiring technique and furnished with 4-pin M8 male connector for electrical connection. It is a cylindrical M12 threaded designed sensor with fixed sensing window. The blue enclosure is made of ULTEM with glass epoxy front part. It is available in size of 58.16mm (L) x 12mm (W) x 12mm (D) and weighs 0.011kg. The sensor is an M12 thread barrel sensor of ULTEM™ plastic with an M8 4-pin male connector. The ultrasonic sensor is suitable for packaging, automotive, paper industry, machine tool, assembly, water treatment, food and beverage processing etc. The sensor is compliant with CE and UL standards and NEMA 4X (indoor use only) and IP67 rated. Detection of any material, irrespective of colour, light ambiance at the same distance, without adjustment or correction factor. The SUPERPROX sensor is long range, small size, fast response, performance, reliability and low cost, offers a simple, easy to use, once-and-for all solution to many of proximity sensing problems encountered daily in almost every industry.
