Documentation & Downloads

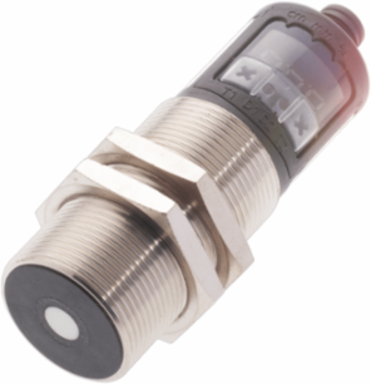

Balluff BUS M30E1-PPC-03/025-S92K Ultrasonic sensors with analog output BUS M30E1-PPC-03/025-S92K
- MPN: BUS M30E1-PPC-03/025-S92K
- PPN: BAL-BUS002K
CAD
$1324.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Position detection or object detection in solid, powdery and fluid media – they count and monitor the presence of objects without contact. Universally applicable, they work independently of color and surface texture. Fog, dust and impurities are not a problem for them. Their high resolution and small blind spots guarantee the highest precision. Ultrasonic sensors distinguish themselves by means of their output signal.
Documentation & Downloads
Specifications
Key Specifications
- Style
- Ø 30 mm
- Switching output
- PNP NO/NC
- Housing material
- Stainless steelPBT, TPU
- Range
- 30-350 mm
- Approval/Conformity
- cULus LISTED, CE, EAC, WEEE
- IP rating
- IP67
- Operating voltage Ub
- 9-30 VDC
Analog outputAnalog, voltage/analog, current 0…10 V/4…20 mA
ConnectionConnector, M12x1-Male, 5-pin
Material sensing surfacePU foam/Epoxy resin/Glass
Switching frequency25 Hz
Ambient temperature-25-70 °C
Repeat accuracy± 0.15 % FS
