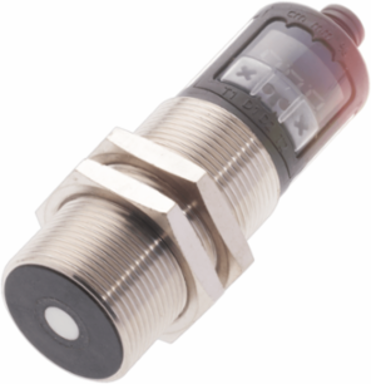

Balluff BUS M30M1-XC-03/025-S92K Ultrasonic sensors with analog output BUS M30M1-XC-03/025-S92K
- MPN: BUS M30M1-XC-03/025-S92K
- PPN: BAL-BUS002N
CAD
$1035.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Position detection or object detection in solid, powdery and fluid media – they count and monitor the presence of objects without contact. Universally applicable, they work independently of color and surface texture. Fog, dust and impurities are not a problem for them. Their high resolution and small blind spots guarantee the highest precision. Ultrasonic sensors distinguish themselves by means of their output signal.
Documentation & Downloads
Specifications
Key Specifications
| Style | Ø 30 mm |
|---|---|
| Connection | Connector, M12x1-Male, 5-pin |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Approval/Conformity | cULus LISTED, CE, EAC, WEEE |
| IP rating | IP67 |
| Operating voltage Ub | 9-30 VDC |
| Analog output | Analog, voltage/analog, current 0…10 V/4…20 mA |
|---|---|
| Housing material | BrassPBT, TPU |
| Range | 30-350 mm |
| Ambient temperature | -25-70 °C |
| Repeat accuracy | ± 0.15 % FS |
