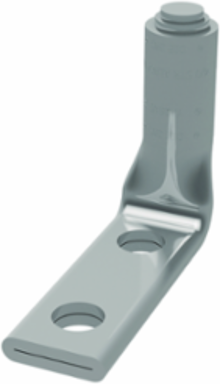

Burndy YA34A390 Uninsulated Aluminum Compression Terminal, 1 Hole, 4.09 Inch Length, 35 kV Rating
- MPN: YA34A390
- UPC: 781810178256
- PPN: BUR-534189
CAD
$255.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-5/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.15 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 104 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.62 in
- Dimension - Z inch
- 0.77 in
Dimension - B Length inch2.34 in
Dimension - Bolt Size fraction1/2
Dimension - Height inch4.59 in
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.09 in
Dimension - Outside Diameter inch1.32 in
Dimension - Thread Size1/2
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 500 kcmil
- Conductor - Copper Str Size
- 500 kcmil
Conductor - AL Str Size Range500 kcmil
Conductor - Copper Str Size Range500 kcmil
General
- Color Code
- Pink
- Die Index
- 300
- Feature - Barrel Type
- Standard
- Material
- Aluminum
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC 12 Digit
- 7818101782566
Connector TypeTerminal
Feature - Barrel StyleChamfered
Item Type4D
Physical Attribute - Number of Holes2
PlatedY
Temperature Rating194
UPC781810178256
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
