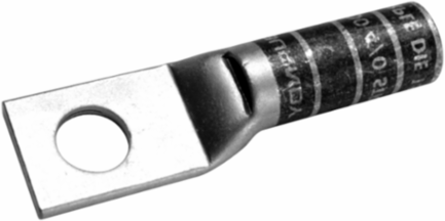

Burndy YAZ38TC12FX HYLUG Long Barrel Terminal Connector, 500 kcmil, 1/2 Inch Stud, Tin Plated
- MPN: YAZ38TC12FX
- UPC: 781810242063
- PPN: BUR-25020581
CAD
$141.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel flex conductor, single hole/W/ insp window, 500 flex1325/24, 535.3 kcmil, 1/2" stud, Tin plated, Pink, L99.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 2-13/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Hole Size inch | 0.52 in |
| Dimension - L Length Overall mm | 121 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 1.84 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 2.81 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 4.77 in |
| Dimension - Outside Diameter inch | 1.25 in |
| Dimension - Strip Length inch | 2-7/8 |
| Dimension - Z inch | 0.55 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 535.3 (1325/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 500 kcmil |
| Conductor - Copper Flex H Size | 500 kcmil |
| Conductor - Copper Flex I Size | 500 kcmil |
| Conductor - Copper Flex K Size | 500 kcmil |
| Conductor - Copper Flex M Size | 500 kcmil |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 535.3 (1325/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 500 kcmil |
| Conductor - Copper Flex H Size Range | 500 kcmil |
| Conductor - Copper Flex I Size Range | 500 kcmil |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Conductor - Copper Flex M Size Range | 500 kcmil |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818102420633 |
| Color Code | Pink |
|---|---|
| Die Index | L99 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810242063 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 15 |
|---|
