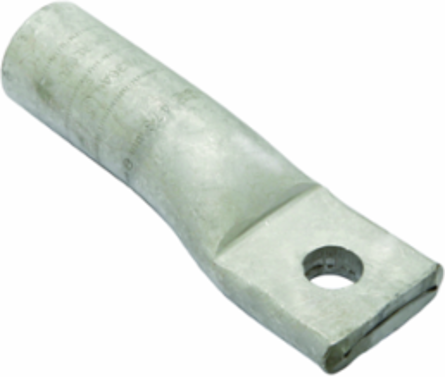

Burndy YA32A9 HYLUGTM Uninsulated Aluminum Compression Terminal, 1 Hole, 3/8 Inch, 35 kV
- MPN: YA32A9
- UPC: 781810650592
- PPN: BUR-50026879
CAD
$84.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - D inch
- 0.83 in
- Dimension - Length Overall inch
- 3.95 in
- Dimension - Pad Width inch
- 1.62 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - L Length Overall mm100 mm
Dimension - N inch0.41 in
Dimension - Strip Length inch2-5/16
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 400 Kcmil
Conductor - Copper Str Size400 Kcmil
General
- Color Code
- Green
- Die Index
- 472
- Item Type
- 4D
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Temperature Rating
- 194
- UPC
- 781810650592
Connector TypeTerminal
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC 12 Digit7818106505922
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
