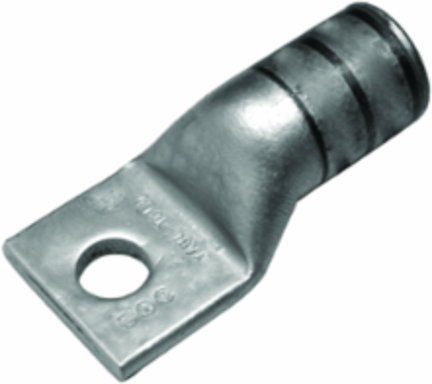

Burndy YAG2CLTC38FX Copper Compression Terminal, 1-1/2 Inch Strip Length, 4 AWG, 35 kV Rating
- MPN: YAG2CLTC38FX
- UPC: 781810194379
- PPN: BUR-25015651
CAD
$20.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Terminal
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1/2
- Dimension - Bolt Hole Size inch
- 0.40 in
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 42 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.58 in
- Dimension - Stud Size inch
- 3/8 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.50 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch1.67 in
Dimension - Outside Diameter inch0.41 in
Dimension - Strip Length inch1/2 in
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4 (105/24) DLO
- Conductor - Copper Flex H Size
- 4 AWG
- Conductor - Copper Flex K Size
- 4 AWG
- Conductor - Copper Solid Size
- 4 AWG
- Conductor - Copper Str Size
- 4 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size4 AWG
Conductor - Copper Flex I Size4 AWG
Conductor - Copper Flex M Size4 AWG
Conductor - Copper Str Navy Size40 & 50 NAVY
Conductor - CopperWeld Str Size2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
General
- Color Code
- Gray
- Die Index
- 8
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810194379
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStraight
Plating TypeTin
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818101943799
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 5
