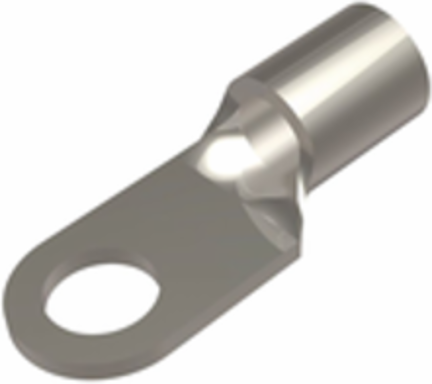

Burndy YAD33M16E58 Uninsulated Ring Terminal For 400 - 450 kcmil
- MPN: YAD33M16E58
- UPC: 781810549285
- PPN: BUR-50002440
- UNSPSC: 39121405
CAD
$81.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Ring Terminal For 400 - 450 kcmil.
Features
- Constructed of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Long brazed seam barrel and deep V groove inner serrations provide optimum conductivity reliability and holding power aftercrimping
- Electro-tin plating to provide durable, long-lasting corrosion resistance
- Wire range is clearly marked on terminal for easy identification
- Inspection hold for an easy visual check of wire insertion
- Long neck terminal permits easy bending and stacking of several terminals on a common stud
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Conductor - Copper Str Size Range
- 400 kcmil - 450 kcmil
- Dimension - Bolt Size fraction
- 5/8
- Dimension - L Length Overall mm
- 76 mm
- Dimension - Outside Diameter inch
- 1.24 in
- Dimension - Strip Length inch
- 1-3/8
- Width
- 1.50 in
- Physical Attribute - Tongue Type
- Ring
- Plating Type
- Tin
- Standards - RoHS Compliance Status
- NC
- Application
- The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
- Type
- Ring Tongue
- Connector Type
- Ring Terminal
- Class Code
- B57
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Stock Indicator
- N - Non-stock
- UL Listed
- No
- Voltage - Maximum
- 35 kV
- BOX SIZE
- 6.800x20.500x10.000 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810549285
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810549286
- Each - Pack Description
- Each
- Package - Gross Weight per Pack
- 3.12 lb.
- Package - Number of Sub Packs
- 10
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810549285
- Package Height
- 4.400 in
- Package Quantity
- 10 EA
- Package Width
- 3.750 in
- Pallet Height
- 45.300 in
- Pallet Weight
- 1688.040 lb.
- Standard Package Quantity
- 10
Conductor - Copper Str Size400 kcmil;450 kcmil
Dimension - B Length inch1.26 in
Dimension - Hole Size inch0.67 in
Dimension - Length Overall inch3.01 in
Dimension - Pad Width inch1.50 in
Dimension - Stud Size inch5/8
Feature - Barrel TypeLong
PlatedY
Product TypeTERMINAL
Trade NameHYLUG™
Sub BrandTERMINALS, HYLUG
Conductor TypeCU C Str-Size;CU C Flex-Size
ARRA CompliantNo
Description - Invoice400-450KCM FLEX 5/8 STUD
Harmonization Code8535908020
Lead Time11 wk
Order Multiple10 EA
Sub Class CodeB57BK8F
MaterialCopper
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100 EA
Each - Number of Sub Packs1
Lowest Level UOMEach
Package - GTIN - Package30781810549286
Package - Pack DescriptionPackage
Package - Total Units10 EA
Package Length5.750 in
Package Weight3.330 lb.
Pallet - GTIN - Package70781810549284
Pallet Length48.000 in
Pallet Width40.000 in
NAICS Code423610
Certifications
- Buy American Compliant
- No
- cULus
- No
- UL Recognized
- No
CSA ApprovedNo
ETLNo
