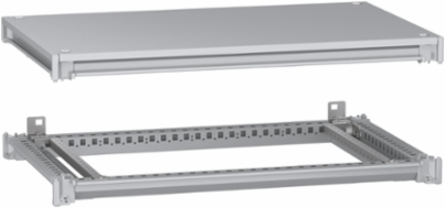

Schneider Electric NSYSFNC85 PanelSeT SFN Frame Kit for Electrical Enclosure 800 mm W x 500 mm D
- MPN: NSYSFNC85
- PPN: SCH-NSYSFNC85
CAD
$925.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The NSYSFNC85 PanelSeT SFN Frame Kit by Schneider Electric is expertly crafted to enhance the functionality of electrical enclosures. With its robust design, this frame kit allows for efficient installation and management of electrical components, ensuring that your system remains organized and secure. Measuring 800 mm in width and 500 mm in depth, it is tailored to fit seamlessly within standard enclosure configurations, providing a reliable and durable solution for various industrial applications. This product is an integral part of a comprehensive system designed to meet the demands of modern electrical setups.
Features
- The NSYSFNC85 framework kit is precision-engineered specifically for the modular Schneider Electric PanelSeT SFN (formerly Spacial SF) series with a nominal width of 800 mm and a depth of 500 mm. This exact factory spec eliminates spatial alignment issues during field assembly, ensuring your side panels, doors, and vertical uprights bolt together seamlessly.
- Manufactured from premium galvanized steel and coated with a high-resistance grey (RAL 7035) epoxy-polyester powder finish, this kit provides exceptional protection against rust, chemical exposure, and mechanical abrasion. It solves the common pain point of premature enclosure degradation, reducing long-term maintenance overhead and preventing costly component exposure.
- This multi-purpose framework kit comes out of the box complete with one structural bottom frame, one top frame, and an integrated roof panel designed for direct corner-screw mounting onto vertical uprights. The ergonomic, modular design dramatically slashes labor times for electrical contractors and panel builders by simplifying complex build sequences into an efficient, secure process.
Documentation & Downloads
Specifications
Key Specifications
| Height | 4.33 in |
|---|---|
| Country of Origin | Brazil, Spain, France, United States |
| Width | 31.5 in |
|---|---|

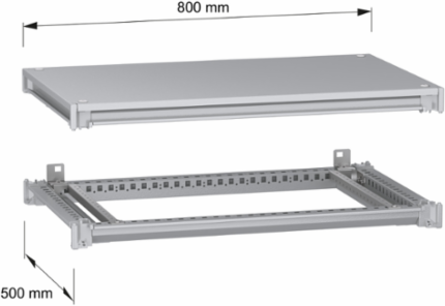

| Depth | 500 mm |
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 bottom frame, 1 roof, 1 top frame |
| Mounting Location | top of vertical uprights, bottom of vertical uprights |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 35 kg CO2 eq., 35.33617484 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 40 kg CO2 eq., 40.12458711 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2507020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2306 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Fixing Mode | by screws - each corner of enclosure |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 83 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 97 |
| Height Useful | 110 mm |
| Width Real | 800 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
| Customs Code | 9403999045 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm, - W: 800 mm D: 500 mm |
| Carbon Footprint Of The Distribution Phase [A4] | 2.958031691, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 4.187863711, 4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-05-01 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Or Component Type | framework kit |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2301018EN |
| Pep Verification Date | 2023-07-31 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 110 mm |
| Width Nominal | 800 mm |
| Accessory / Separate Part Category | enclosure accessory |
| Package Weight(Lbs) | 17.270 kg |
| Take-back | No |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -11573.8454 |
