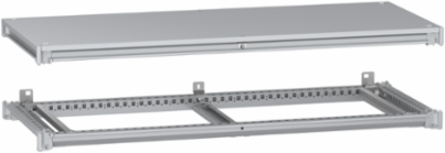

PanelSeT SFN Framework Kit, Steel, W1200 D500 mm, Grey RAL 7035
Schneider Electric

Schneider Electric NSYSFNC125 PanelSeT SFN Framework Kit, Steel, W1200 D500 mm, Grey RAL 7035

  • MPN: NSYSFNC125
  • PPN: SCH-NSYSFNC125

CAD

$1301.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The NSYSFNC125 PanelSeT SFN Framework Kit from Schneider Electric is designed for robust structural support in various electrical applications. Constructed from steel, this framework kit offers lasting durability and stability, making it an ideal choice for panel builders and electrical engineers. With dimensions of 1200 mm in width and 500 mm in depth, it provides ample space for housing various components while maintaining an organized layout. Finished in a sleek Grey RAL 7035, it not only serves a practical purpose but also seamlessly integrates into a variety of environments, ensuring both functionality and aesthetic appeal.

Documentation & Downloads

Specifications

Additional

Material
Steel
Depth
500 mm (19.69 in)
Surface Finish
Epoxy-polyester powder
Color
Gray RAL 7035
Range
PanelSeT
Device Application
Multi-purpose
Device Composition
1 bottom frame, 1 roof, 1 top frame
Warranty
18 months
Compliance
Green Premium, REACh compliant, EU RoHS compliant, Mercury free
RoHS Exemption Information
Yes
Mercury Free
Yes
Eu RoHS Directive
Pro-active compliance (out of scope)

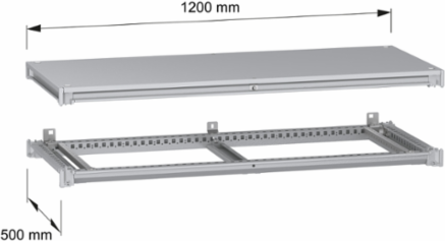

Width1200 mm (47.24 in)
Height110 mm (4.33 in)
Fixing ModeBy screws - each corner of enclosure
Product Or Component TypeFramework kit
Range CompatibilityPanelSeT, PanelSeT SFN
Mounting LocationTop of vertical uprights, bottom of vertical uprights
Accessory / Separate Part CategoryEnclosure accessory
Environmental DisclosureENVPEP2301018_V1
China RoHS RegulationPro-active China RoHS declaration (out of scope)
Reach Free Of SvhcYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileN/A
