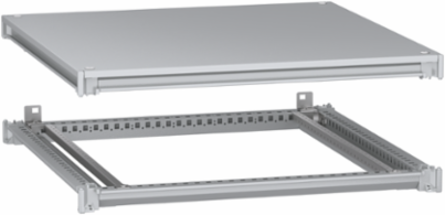

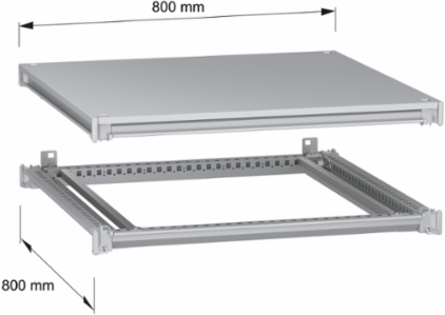

Schneider Electric NSYSFNC88 PanelSeT SFN Frame Kit for 800 mm x 800 mm Enclosure, Steel, Grey RAL 7035

MPN: NSYSFNC88
PPN: SCH-NSYSFNC88
UNSPSC: 39121302

$1115.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The NSYSFNC88 PanelSeT SFN Frame Kit from Schneider Electric is expertly crafted for 800 mm x 800 mm enclosures, ensuring a perfect fit and optimal functionality. Constructed from durable steel in a sleek grey finish (RAL 7035), this frame kit provides robust support while enhancing the overall aesthetic of your setup. Designed to integrate seamlessly with Schneider Electric enclosures, it is an essential component for those looking to maintain a clean and organized system, maximizing both durability and accessibility in various applications.

Features

Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version.
Sturdy, robust, and durable for maximum component protection.
Ergonomic design for convenience & time-saving operations.
Available in different sizes to fit your installation needs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Width	31.5 in
Depth	800 mm

Height	4.33 in
Weight	21100 g

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 bottom frame, 1 roof, 1 top frame
Mounting Location	bottom of vertical uprights, top of vertical uprights
Carbon Footprint Of The End Of Life Phase C1 To C4	48 kg CO2 eq., 47.79444162
Carbon Footprint Of The Manufacturing Phase A1 To A3	54 kg CO2 eq., 54.27107615
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Fixing Mode	by screws - each corner of enclosure
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	112 kg CO2 eq.
Data Source	extrapolated product
Height Useful	110 mm
Width Real	800 mm
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional Unit Unit	unit
Recyclability Potential In %	97

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	- W: 800 mm D: 800 mm, - W: 800 mm D: 800 mm, - W: 800 mm D: 800 mm, - W: 800 mm D: 800 mm, - W: 800 mm D: 800 mm, - W: 800 mm D: 800 mm
Carbon Footprint Of The Distribution Phase A4	4.00092748, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	5.664354121, 6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-05
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	steel
Product Or Component Type	framework kit
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Database Version	2022-01
Height Nominal	110 mm
Width Nominal	800 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	9403999045
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	111.7307994
Environmental Disclosure	ENVPEP2301018EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
