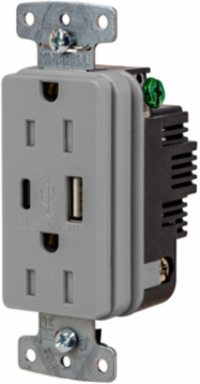

Hubbell Wiring Device-Kellems USB15ACGY USB Charger Duplex Receptacle, 15A 125V, 3.1A USB Ports, Gray
- MPN: USB15ACGY
- UPC: 883778309953
- PPN: HBL-USB15ACGY
- UNSPSC: 39121406
CAD
$59.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 1) 3.1 A "C" USB and "A" Ports, Gray
Features
- High Power 3.1 Amp, 5 Volt USB Output
- One Type A Port, One Type-C Port
- Tamper Resistant Grade Duplex Compatible
- USB Ports Rated 10,000 Cycles
- 3.1 A 5V DC, Style A and C
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 2.200 in |
| Mounting Method | Mounting Screws |
| Amperage Rating | 15 A |
| Color | Gray |
| Dielectric Strength | 1500 V Withstand |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Special Features | 3.1 A 5V DC, Style A and C |
| Temperature Rating | Maximum continuous 75°C, minimum -40°C (w/o impact) |
| Voltage Rating | 125 V |
| Wire Size | #14-10 AWG |
| Number Of Poles | 2-Pole |
| Style | Style Line Decorator |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A062 |
| Series | Hubbell-PRO |
| BOX SIZE | 4.200x10.900x4.300 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00883778309953 |
| Case Weight | 15.800 lb. |
| Current / Amperage Rating | 15 A |
|---|---|
| Industry Standard(s) | cULus Listed to UL498, UL1310 |
| Size | Standard Sized Product |
| Application | USB Charging/Power |
| Connection | Back Wire Screws |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Standard | cULus Listed to UL498, UL1310 |
| Type | One Type A, One Type-C USB Port |
| Wattage | 1815 W |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| NAICS Code | 335931A102 |
