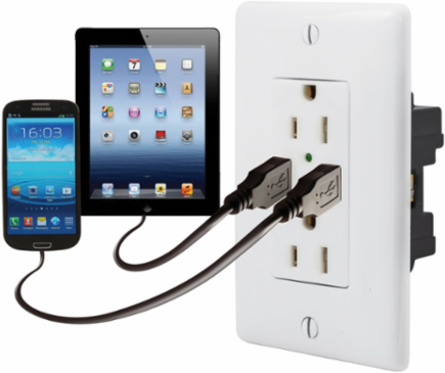

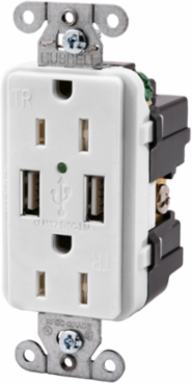

Hubbell Wiring Device-Kellems USB15X2W Duplex Receptacle with Dual USB 3.8A Ports, 2-Pole 15A 125V
- MPN: USB15X2W
- UPC: 883778304606
- PPN: HBL-USB15X2W
- UNSPSC: 39121406
CAD
$28.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Dual USB Type 2.0 ports 3.8 Amp, 5 Volt DC, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White
Features
- Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
- Tamper-Resistant decorator duplex receptacle
- Green LED indicator to show USB power available
- Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
- Dual USB Charger, Tamper Resistant
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 4.12 in x 1.75 in x 1.96 in |
| Horsepower - Maximum | 0.5 |
| Length | 4.12 in |
| Amperage Rating | 15 A |
| Color | White |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Dual USB Charger, Tamper Resistant |
| Type | Two Type 2.0 Ports |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Connectivity | Back and Side Wired Screw Terminals |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Style | Style Line Decorator |
| Description - Invoice | RECEP, DUP, 15A 125V,3.8A 5V USB PORT,WH |
| Harmonization Code | 8536699999 |
| MSDS Flag | No |
| Sub Class Code | A04A062 |
| Current Rating | 15 A |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.75 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 1.96 in |
| Industry Standard(s) | cULus Listed To UL498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA;Mechanical - USB Port - Stainless steel Rated for 10,000 plug insertions and removal |
| Application | USB Charger Hospital Grade |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Size | 4.12 in x 1.75 in x 1.96 in |
| Standard | cULus Listed To UL498 |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Width | 1.75 in |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replacement Catalog Number | USB15A5W |
| Material - Mounting Hardware | Screw Mounting |
| Indicator(s) Type | Green LED |
| Series | Heavy Duty |
| BOX SIZE | 4.300x10.900x4.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 883778304606 |
| Case Weight | 15.000 lb. |
| Lowest Level UOM | Each |
