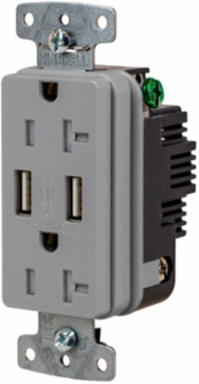

Hubbell Wiring Device-Kellems USB20AGY USB Charger Duplex Receptacle, 20A 125V, 2-Pole 3-Wire, 2 Type A Ports
- MPN: USB20AGY
- UPC: 883778310072
- PPN: HBL-USB20AGY
- UNSPSC: 39121406
CAD
$59.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, 2) 3.1 A USB Ports, Brown
Features
- High Power 3.1 Amp, 5 Volt USB Output
- Two Type A Ports
- Tamper Resistant Grade Duplex Compatible
- USB Ports Rated 10,000 Cycles
- 3.1 A 5V DC, Style A
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.200 in
- Mounting Method
- Mounting Screws
- Amperage Rating
- 20 A
- Color
- Gray
- Dielectric Strength
- 1500 V Withstand
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Special Features
- 3.1 A 5V DC, Style A
- Temperature Rating
- Maximum continuous 75°C, minimum -40°C (w/o impact)
- Voltage Rating
- 125 V
- Wire Size
- #14-10 AWG
- Number Of Poles
- 2-Pole
- Style
- Style Line Decorator
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A062
- Series
- Hubbell-PRO
- BOX SIZE
- 4.300x10.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00883778310072
- Case Weight
- 15.900 lb.
- Pallet Height
- 48.000 in
- Pallet Weight
- 1113.000 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Industry Standard(s)cULus Listed to UL498, UL1310
SizeStandard Sized Product
ApplicationUSB Charging/Power
ConnectionBack Wire Screws
Environmental ConditionsIndoor Dry Unless Protected by Additional Means
Number of Poles2-Pole
PhaseSingle Phase
StandardcULus Listed to UL498, UL1310
TypeTwo Type A USB Ports
Wattage1815 W
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Harmonization Code8536698000
MSDS FlagNo
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.300 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet - GTIN - Package70883778310071
Pallet Length48.000 in
Pallet Width40.000 in
