nVent Hoffman UU605025W Ultrx Enclosure Window Door Type 4X, 600x500x250mm, Lt Gray, Fiberglass

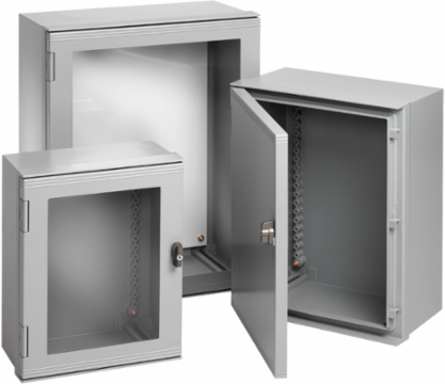

Ultrx Enclosure Window Door Type 4X, 600x500x250mm, Lt Gray, Fiberglass
  • MPN: UU605025W
  • UPC: 783510358600
  • PPN: HOF-UU605025W
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2232.46/ EA

Description

Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Window Door Type 4X, UU605025W item measures 600x500x250mm with a material of Fiberglass colored Lt Gray.

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Enclosure may be rotated 180 degrees for left and right hinging
  • Molded-in drip shields are standard with each enclosure
  • Impact-resistant polycarbonate window is permanently bonded in place
  • Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
  • Door hinges are replaceable
  • Type 316 stainless steel quarter-turn latch
  • Optional keylocking or padlocking handle available
  • Molded-in DIN bosses
  • Molded bosses on door provide additional mounting provisions
  • Integral mounting rails provide infinite panel adjustment front to back
  • Optional data pocket is high-impact thermoplastic

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
513
Protection Rating
NEMA Type 12
Finish
Smooth Matte
Color Code
RAL 7035
Window Size (M x N)
19.61 x 15.20
Internal Dimensions (A x B x C)
23.94 x 19.53 x 10.63
IP Rating
IP66
Sub Brand
Ultrx
Size
24.61 x 20.20 in
NEMA Rating
4X Watertight, corrosion-resistant
Height (H)625
Depth (D)278
Product FamilyUltrx
ColorLight Gray
Thickness (T)3.8
Door TypeWindow
Mounting (G x H)457 x 570
Weight30
MaterialFiberglass
Cubic Capacity4970 cubic in
