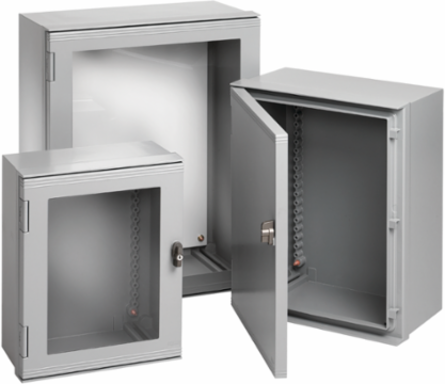

nVent Hoffman UU756030W Ultrx Enclosure Window Door Type 4X, 750x600x300mm, Lt Gray, Fiberglass
nVent Hoffman UU756030W Ultrx Enclosure Window Door Type 4X, 750x600x300mm, Lt Gray, Fiberglass
- MPN: UU756030W
- UPC: 783510337308
- PPN: HOF-UU756030W
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3006.77/ EA
Description
Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Window Door Type 4X, UU756030W item measures 750x600x300mm with a material of Fiberglass colored Lt Gray.
Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
- Door hinges are replaceable
- Type 316 stainless steel quarter-turn latch
- Optional keylocking or padlocking handle available
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 612
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Window Size (M x N)
- 25.51 x 19.13
- Internal Dimensions (A x B x C)
- 29.84 x 23.43 x 12.64
- IP Rating
- IP66
- Sub Brand
- Ultrx
- Size
- 30.51 x 24.09 in
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)775
Depth (D)329
Product FamilyUltrx
ColorLight Gray
Thickness (T)3.8
Door TypeWindow
Mounting (G x H)555 x 718
Weight42
MaterialFiberglass
Cubic Capacity8837 cubic in
