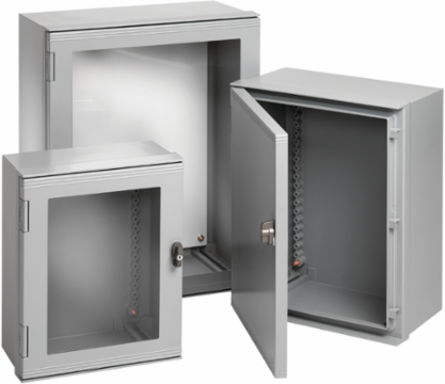

nVent Hoffman UU606040W Ultrx Enclosure Window Door Type 4X, 600x600x400mm, Lt Gray, Fiberglass
- MPN: UU606040W
- UPC: 783510614201
- PPN: HOF-UU606040W
- UNSPSC: 39121324
CAD
$2423.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Window Door Type 4X, UU606040W item measures 600x600x400mm with a material of Fiberglass colored Lt Gray.
Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
- Door hinges are replaceable
- Type 316 stainless steel quarter-turn latch
- Optional keylocking or padlocking handle available
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 612 |
| Protection Rating | NEMA Type 12 |
| Finish | Smooth Matte |
| Color Code | RAL 7035 |
| Window Size (M x N) | 19.61 x 19.13 |
| Internal Dimensions (A x B x C) | 23.94 x 23.43 x 16.57 |
| IP Rating | IP66 |
| Sub Brand | Ultrx |
| Size | 24.61 x 24.09 in |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Height (H) | 625 |
|---|---|
| Depth (D) | 429 |
| Product Family | Ultrx |
| Color | Light Gray |
| Thickness (T) | 3.8 |
| Door Type | Window |
| Mounting (G x H) | 555 x 568 |
| Weight | 52 |
| Material | Fiberglass |
| Cubic Capacity | 9294 cubic in |
