Schneider Electric ATV320U04M2C Altivar Machine Variable Speed Drive 0.37kW 200-240V 1 Phase Compact
- MPN: ATV320U04M2C
- PPN: SCH-ATV320U04M2C
CAD
$432.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

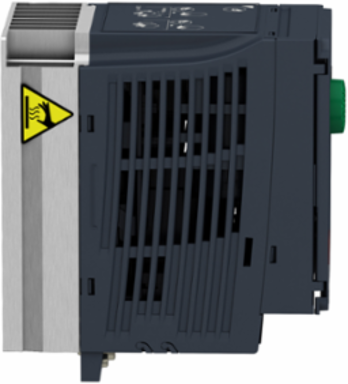

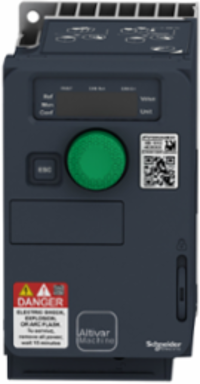

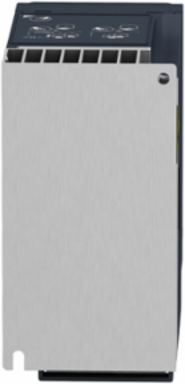

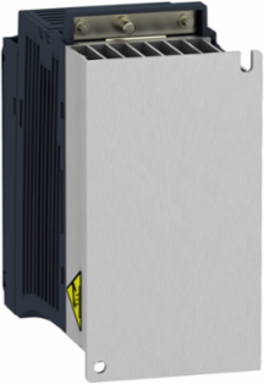

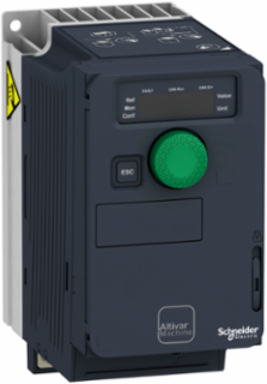

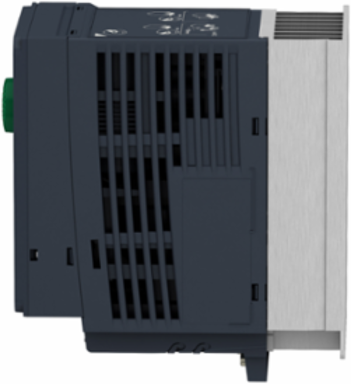

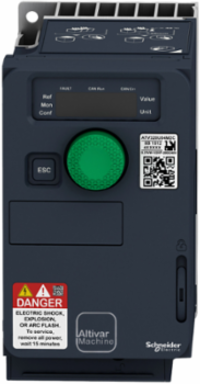

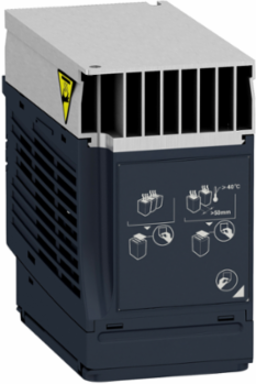

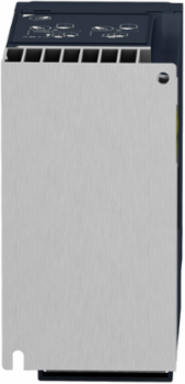

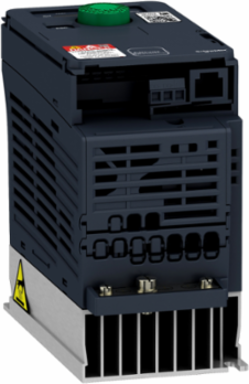

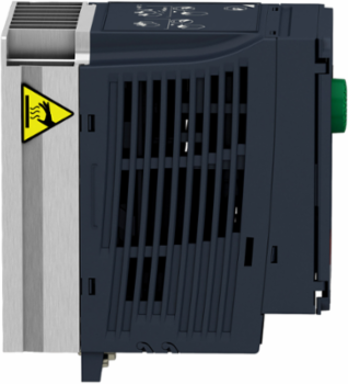

Altivar Machine Variable Speed Drive 0.37kW 200-240V 1 Phase Compact
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Latvia, Singapore, United States

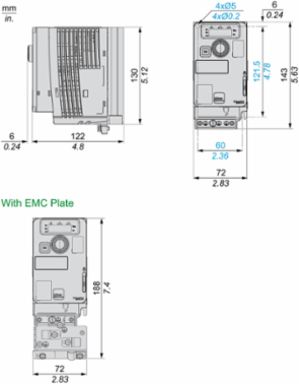

Depth128.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 12.0 A
- Maximum Input Current Per Phase
- 5.9 A
- Maximum Output Voltage
- 240 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating0.5 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
- Environmental Class (During Transport)
- class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.6709807873733393, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 28 kg CO2 eq., 27.835899007656668
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Average Percentage Of Asi Certified Metals
- 100 %
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1601008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1714
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2Yes
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- 1 Phase Low Current Possible
- false
- Apparent Power
- 1.2 kVA 240 V heavy duty)
- Base Load Current At High Overload
- 3.7 A
- Capacity Of Dc Link
- 470 µF
- Design Of Frequency Changer
- U converter
- Encoder Protocol
- RS 422
- Housing Material
- plastic
- Maximum Associated Fuse Rating
- 12.0 A
- Method Of Access
- slave CANopen
- Mounting Mode
- wall mount
- Network Number Of Phases
- single phase
- Number Of Hw Interfaces Industrial Ethernet
- 0.0
- Number Of Hw Interfaces Parallel
- 0.0
- Number Of Hw Interfaces Serial Rs23
- 0.0
- Number Of Hw Interfaces Serial Rs485
- 1.0
- Number Of Hw Interfaces Usb
- 0.0
- Operating Element Present
- true
- Optical Interface Present
- false
- Phase
- single phase
- Power Loss Per Device Current Dependent
- 30 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Supporting Protocol For Bacnet
- false
- Supporting Protocol For Devicenet
- true
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- true
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Switching Frequency
- 2...16 kHz adjustable4...16 kHz with derating factor
- Total Lifecycle Carbon Footprint
- 548 kg CO2 eq.
- Updatability
- Upgradeable through digital modules
- With Safety Function Safe Programmable Logic
- false
- Motor Power Kw 10 N Motor Power Kw
- 0.37 kW
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To adapt the speed and torque of synchronous, asynchronous motor to the machine's operating point for 0,75 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 200V to 240V rated 1-phase voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium high phase, 40% uptime in medium low phase and 10% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: general machine.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1280.05
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 143.0 mm
- [Us] Rated Supply Voltage
- 200...240 V200...240 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 1.206 kg
- Warranty (In Months)
- 18
- Percentage Bio Based Plastic
- 18 %
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC
Environmental Class (During Storage)class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
Carbon Footprint Of The Distribution Phase [A4]0.2211544777499616, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7 kg CO2 eq., 0.6626456938215098
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]517 kg CO2 eq., 517.3938651055877
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
4 Quadrant Operation Possibletrue
Application In Domestic And Commercial Area Permittedfalse
Braking To Standstillby DC injection
Computer Porttrue
Emc FilterClass C2 EMC filter integrated
Format Of The Drivecompact
Line Current5.9 A 200 V heavy duty)4.9 A 240 V heavy duty)
Maximum Input Current Per Phase5.9 A
Motor Power Kw0.37 kW heavy duty
Network Frequency50-60 Hz
Nominal Switching Frequency4 kHz
Number Of Hw Interfaces Other1.0
Number Of Hw Interfaces Profinet0.0
Number Of Hw Interfaces Serial Rs420.0
Number Of Hw Interfaces Serial Tty0.0
Number Of Output Phases1
Operating Positionvertical +/- 10 degree
Overvoltage CategoryIII
Power Dissipation In Wself-cooled 30 W 200 V 4 kHz
Power Loss Static Current Independent30 W
Product Or Component Typevariable speed drive
Prospective Line Isc1 kA
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Sampling Duration2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemstrue
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Synchronous Motor Control Profilevector control without sensor
Transient Overtorque170-200 % of nominal motor torque
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permittedtrue
Pep CodeENVPEP1601008EN
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %54
Width Nominal72.0 mm
Emc Limit Value (Complied)true
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Average Percentage Of Bio-based Plastic Content18 %
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1601008EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1601008EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint547.7845450721891
Environmental DisclosureENVPEP1601008EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- single phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Type
- open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
- Analogue Output Number
- 1
- Discrete Output Number
- 3
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 0.37 kW
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Output Frequency0.599 kHz
Nominal Output Current3.3 A
Surge Protection And Filtering Attributes
- Emc Filter
- Class C2 EMC filter integrated
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases1
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$432.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$432.65/ EA
Loading add to cart quantity...
