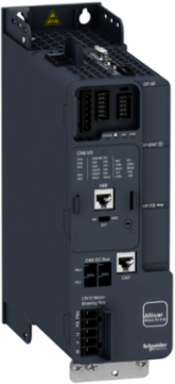

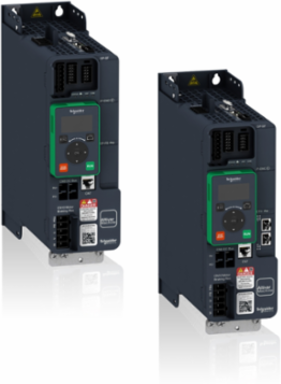

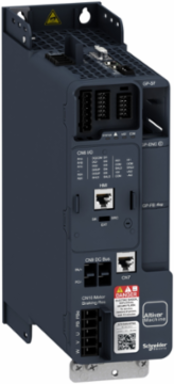

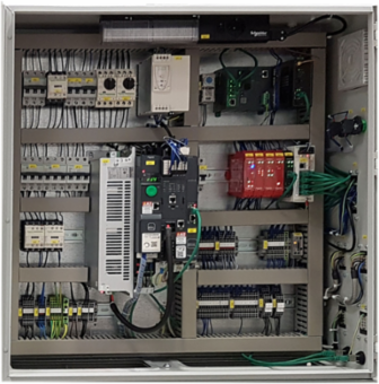

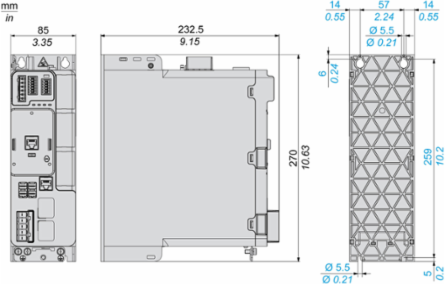

Schneider Electric ATV340U07N4 Altivar Machine Variable Speed Drive 0.75 kW 3-Phase 400V

MPN: ATV340U07N4
PPN: SCH-ATV340U07N4

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$805.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Altivar Machine Variable Speed Drive 0.75 kW 3-Phase 400V

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Sweden, United States

Depth	232.5 mm

Communications & Management Attributes

Communication Port Protocol	Modbus serial

Complementary Attributes

Maximum Transient Current	3.1 A 60 s normal duty)3.3 A 60 s heavy duty)3.8 A 2 s normal duty), 4 A 2 s heavy duty)
Brake Chopper Integrated	true
Maximum Horse Power Rating	1.5 hp normal duty1 hp heavy duty
Maximum Output Frequency	0.599 kHz
Maximum Switching Current	relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2C resistive, cos phi = 1 5 A 30 V DCrelay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1C resistive, cos phi = 1 3 A 30 V DCrelay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2C resistive, cos phi = 1 5 A 250 V AC

Minimum Switching Current	relay output R1B 5 mA 24 V DC, relay output R2C 5 mA 24 V DC
Maximum Associated Fuse Rating	8.0 A
Maximum Input Current Per Phase	3.4 A
Maximum Output Voltage	480 V

Important Information Attributes

Persona Type Ids	EU, OM, OM8, SI
Apparent Power	2.2 kVA 480 V normal duty), 2.2 kVA 480 V heavy duty)
Connector Type	1 x RJ45, Modbus serial on front face, 1 x RJ45, Modbus serial HMI on front face, 1 RJ45
Electrical Connection	screw terminal 1.5...4 mm² line sidescrew terminal 4...6 mm² DC bus, screw terminal 1.5...4 mm² motorscrew terminal 0.2...2.5 mm² controlline side screw terminal 1.5...4 mm² 14 AWG...12 AWG, DC bus screw terminal 4...6 mm² 12 AWG...10 AWG, motor screw terminal 1.5...4 mm² 14 AWG...12 AWG, control screw terminal 0.2...2.5 mm² 24 AWG...12 AWG
Encoder Protocol	1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
Line Current	2.6 A 480 V heavy duty), 2.6 A 380 V normal duty)2.1 A 480 V normal duty)3.4 A 380 V heavy duty)2.6 A 480 V without line choke heavy duty), 2.6 A 380 V with external line choke normal duty), 2.1 A 480 V with external line choke normal duty), 1.9 A 380 V with external line choke heavy duty), 1.6 A 480 V with external line choke heavy duty), 3.4 A 380 V without line choke heavy duty)
Motor Slip Compensation	can be suppressed, not available in permanent magnet motor law, automatic whatever the load, adjustable
Power Dissipation In W	forced convection 33 W 380 V 4 kHz normal duty)natural convection 28 W 380 V 4 kHz heavy duty), forced convection 28 W 380 V 4 kHz heavy duty)natural convection 33 W 380 V 4 kHz normal duty)
Protection Type	safe torque off drivemotor phase loss drive, thermal protection motor, safe torque off motor, motor phase loss motor, thermal protection drive, overheating drive, overcurrent drive, output overcurrent between motor phase and earth drive, output overcurrent between motor phases drive, short-circuit between motor phase and earth drive, short-circuit between motor phases drive, DC Bus overvoltage drive, line supply overvoltage drive, line supply undervoltage drive, input supply loss drive, exceeding limit speed drive, break on the control circuit drive
Synchronous Motor Control Profile	permanent magnet motor, reluctance motor
Motor Power Hp 12	1.5 hp normal duty, 1 hp heavy duty
Certificate Agency	UL, CSA, TÜV, EAC, CTick
Input/Output Type	programmable as logic input/output DQ1 0-1 kHz, <= 30 V DC, 100 mA, programmable as logic input/output DQ2 0-1 kHz, <= 30 V DC, 100 mA
Environmental Class (During Storage)	class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
Carbon Footprint Of The Distribution Phase [A4]	0.4739159791096693, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.6 kg CO2 eq., 0.6486902542592797
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	892 kg CO2 eq., 892.0546851318285
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311030EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1923
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier	1
Function Option	Standard
Market Segmentation	Industrial
1 Phase Low Current Possible	false
Application In Domestic And Commercial Area Permitted	false
Base Load Current At High Overload	2.2 A
Braking To Standstill	by DC injection
Computer Port	true
Design Of Frequency Changer	U converter
Housing Material	plastic
Marking	CE
Maximum Input Current Per Phase	3.4 A
Motor Power Kw	1.1 kW normal duty0.75 kW heavy duty
Mounting Mode	cabinet mount
Noise Level	52.7 dB
Number Of Addresses	1-247
Number Of Output Phases	3
Operating Position	vertical +/- 10 degree
Overvoltage Category	class III
Power Loss Per Device Current Dependent	49.0 W
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	machine
Range Of Product	Altivar Machine ATV340
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	5 %
Safety Function	STO (safe torque off) SIL 3
Software Version	v6.1
Supply Frequency	50...60 Hz +/- 5 %
Supporting Protocol For Bacnet	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	true
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Switching Frequency	2...16 kHz adjustable14...16 kHz with derating factor
Transmission Frame	RTU
Type Of Polarization	no impedance
Volume Of Cooling Air	18.0 m3/h
With Safety Function Safe Programmable Logic	false
Pep Code	ENVPEP2311030EN
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Indonesia, ID
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	47
Width Nominal	85.0 mm
Emc Limit Value (Complied)	true
Maximum Acceleration Under Shock Load (During Storage)	70 m/s² at 22 ms
Maximum Acceleration Under Vibrational Stress (During Operation)	5 m/s² at 9...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)	5 m/s² at 9...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)	1.5 mm at 2...9 Hz
Permitted Relative Humidity (During Operation)	class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)	class 2K5 according to EN 60721-3
Supporting Protocol For Data-highway	false
Supporting Protocol For Interbus-safety	false
With Safety Function Safe Brake Management (Sbc/Sbt)	true
With Safety Function Safe Operating Stop (Sos)	false
With Safety Function Safe Speed Monitor (Ssm)	false
With Safety Function Safe Torque Off (Sto)	true
With Safety Function Safely Limited Speed (Sls)	true
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504404000

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Asynchronous Motor Control Profile	constant torque standard, variable torque standard, optimized torque mode
Discrete And Process Manufacturing	packaging other applicationhoisting tower crane, hoisting other applicationmaterial handling grouping conveyor, material handling palletizer - high performancematerial working (wood, ceramic, stone, pvc, metal) cutting - high accuracy, material working (wood, ceramic, stone, pvc, metal) polishing, material working (wood, ceramic, stone, pvc, metal) grinding, material working (wood, ceramic, stone, pvc, metal) slitterpackaging filling bottles - synchronized operation, packaging feed conveyor - medium performance, packaging grouping boxing, packaging conveyor, packaging elevator, hoisting standard crane - hoist, material handling automatic storage / retrieval system, packaging shrinking wrapping
Electromagnetic Compatibility	electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Insulation Resistance	> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
Linearity Error	AI1, AI2 +/- 0.15 % of maximum value analog input, AQ1 +/- 0.2 % analog output
Option Card	communication module, Profibus DP V1, communication module, PROFINET, communication module, DeviceNet, communication module, CANopen, communication module, EtherCAT
Power Range	0.55-1 kW 380-440 V 3 phase, 0.55-1 kW 480-500 V 3 phase
Sampling Duration	2 ms +/- 0.5 ms DI1...DI5) - discrete input5 ms +/- 1 ms PTI) - pulse input, 1 ms +/- 1 ms AI1, AI2) - analog input5 ms +/- 1 ms AQ1) - analog output2 ms +/- 0.5 ms DQ1, DQ2) - discrete input/output
Transmission Rate	4.8 kbit/s, 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
Motor Power Kw 10	1.1 kW normal duty, 0.75 kW heavy duty
[Ue] Rated Operational Voltage	380...480 V 1.1 kW normal duty380...480 V 0.75 kW heavy duty, 380...480 V 1.5 hp normal duty, 380...480 V 1 hp heavy duty
Environmental Class (During Operation)	class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Environmental Class (During Transport)	class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	4.226225434014892, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	65 kg CO2 eq., 65.48024960432647
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
4 Quadrant Operation Possible	true
Assembly Style	with heat sink
Base Load Current At Low Overload	2.8 A
Capacity Of Dc Link	195.0 µF
Data Format	8 bits, configurable odd, even or no parity
Emc Filter	class C3 EMC filter integrated
Isolation	between power and control terminals
Maximum Associated Fuse Rating	8.0 A
Method Of Access	slave Modbus RTU
Motor Starter Type	variable speed drive
Network Frequency	50-60 Hz
Nominal Switching Frequency	4 kHz
Number Of Hw Interfaces Serial Rs485	1
Operating Element Present	true
Optical Interface Present	false
Phase	3 phase
Power Loss Static Current Independent	16.0 W
Product Or Component Type	variable speed drive
Prospective Line Isc	5 kA
Refresh Time	relay output R1, R2)5 ms +/- 0.5 ms)
Relative Symmetric Mains Voltage Tolerance	10 %
Returnability	Yes
Shock Resistance	15 gn 11 ms, class 3M3 IEC 60721-3-3
Specific Application	machine
Supporting Protocol For Asi	false
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	true
Supporting Protocol For Profinet Cba	true
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	963 kg CO2 eq.
Type Of Cooling	forced convection
Vibration Resistance	1.5 mm peak to peak 2-19 Hz)IEC 60721-3-3 class 3M31 gn 9-200 Hz)IEC 60721-3-3 class 3M3
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted	true
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium high phase, 40% uptime in medium low phase and 10% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: general machine.
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	2176.45
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	270.0 mm
[Us] Rated Supply Voltage	380...480 V380...480 V - 15...10 %
Maximum Acceleration Under Shock Impact (During Operation)	70 m/s² at 22 ms
Maximum Acceleration Under Shock Load (During Transport)	70 m/s² at 22 ms
Maximum Acceleration Under Vibratory Load (During Storage)	5 m/s² at 9...200 Hz
Maximum Deflection Under Vibratory Load (During Operation)	1.5 mm at 2...9 Hz
Maximum Deflection Under Vibratory Load (During Transport)	1.5 mm at 2...9 Hz
Permitted Relative Humidity (During Storage)	class 1K5 according to EN 60721-3
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Supporting Protocol For Tcp/Ip	false
With Safety Function Safe Direction (Sdi)	false
With Safety Function Safe Position (Sp)	false
With Safety Function Safe Stop 1 (Ss1)	true
With Safety Function Safely Limited Position (Slp)	false
With Sft Fct Safe Stop 2 (Ss2)	false
Package Weight(Lbs)	2.432 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-50 °C without derating vertical position)-15-60 °C, -15-60 °C, -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-50 °C without derating vertical position)50-60 °C with derating factor vertical position)
Ambient Air Transport Temperature	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	962.8837664035387
Environmental Disclosure	ENVPEP2311030EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Operating Altitude	<= 9842.52 ft (3000 m) with current derating above 1000m, <= 9842.52 ft (3000 m) with current derating above 1000m<= 9842.52 ft (3000 m) with current derating above 1000m, <= 9842.52 ft (3000 m) with current derating above 1000m
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2311030EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	not applicable
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2311030EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Phase	3 phase
Range Of Product	Altivar Machine ATV340

Product Or Component Type	variable speed drive

ETIM

ETIM 8	EC001857

ETIM 9	EC001857

Output Attributes

Analogue Output Type	software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Relay Output Type	relay outputs R1Arelay outputs R1C 100000 cycles, relay outputs R2A, relay outputs R2C 100000 cycles
Continuous Output Current	2.2 A 4 kHz heavy duty2.8 A 4 kHz normal duty
Discrete Output Type	programmable output DQ1, DQ2 30 V DC 100 mA
Maximum Output Voltage	480 V
Nominal Output Power	0.75 kW
Speed Drive Output Frequency	0.1-599 Hz

Output Voltage	<= power supply voltage, <= power supply voltage
Analogue Output Number	1
Discrete Output Number	2.0
Maximum Output Frequency	0.599 kHz
Nominal Output Current	2.2 A
Relay Output Number	2

Surge Protection And Filtering Attributes

Emc Filter	class C3 EMC filter integrated

Input Attributes

Analogue Input Type	AI1 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1 software-configurable temperature probe or water level sensorAI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bitsAI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
Discrete Input Type	PTI as pulse input 0-30 kHz, 24 V DC 30 V), DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm, programmable
Analogue Input Number	2
Number Of Input Phases	3

Discrete Input Logic	positive logic (source) DI1...DI5), < 5 V, > 11 V, negative logic (sink) DI1...DI5), > 16 V, < 10 V, positive logic (source) PTI), < 0.6 V, > 2.5 V, positive logic (source) STOA, STOB), < 5 V, > 11 V, 16 preset speeds
Input Compatibility	DI1...DI5 discrete input level 1 PLC IEC 61131-2, PTI pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
Discrete Input Number	5
