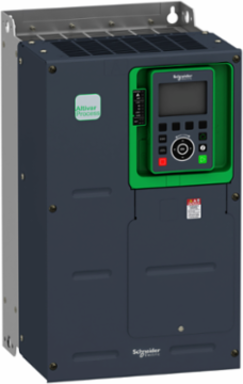

Schneider Electric ATV930D18Y6 Altivar Process Variable Speed Drive, 18.5kW, 25hp, 500-690V, IP21
Schneider Electric ATV930D18Y6 Altivar Process Variable Speed Drive, 18.5kW, 25hp, 500-690V, IP21
- MPN: ATV930D18Y6
- PPN: SCH-ATV930D18Y6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4353.83/ EA
Specifications
Environment
- Product Certifications
- CSA || UL || TÜV
- Standards
- UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
- Regulation Loop
- adjustable PID regulator
- Operating Altitude
- <= 1000 m without derating || 1000...4800 m with current derating 1 % per 100 m
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
- Pollution Degree
- 2
- Ambient Air Temperature For Operation
- -15-50 °C without derating) || 50-60 °C with derating factor)
- Marking
- CE
- Noise Level
- 58 dB
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3
- Operating Position
- vertical +/- 10 degree
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth
Environmental Characteristicchemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3
Noise Level58 dB 86/188/EEC
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Overvoltage CategoryIII
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
Volume Of Cooling Air330 m3/h
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Ambient Air Temperature For Storage-40-70 °C
Assembly Styleenclosed
Ambient Air Transport Temperature-40-70 °C
Complementary
- Discrete Input Logic
- positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
- Maximum Switching Current
- relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC || relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
- Data Format
- 8 bits, configurable odd, even or no parity Modbus serial
- Net Weight
- 22 kg
- Type Of Polarization
- no impedance
- Analogue Input Number
- 3
- Discrete Output Number
- 2
- Transmission Rate
- 10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
- With Safety Function Safely Limited Position (Slp)
- false
- Number Of Addresses
- 1-247
- Linearity Error
- AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Width
- 246 mm
- Depth
- 242 mm
- Sampling Duration
- 2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
- With Safety Function Safe Brake Management (Sbc/Sbt)
- true
- Acceleration And Deceleration Ramps
- linear adjustable separately from 0.01...9999 s || S, U or customized
- Base Load Current At High Overload
- 18.0 A
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- Base Load Current At Low Overload
- 24.0 A
- Input Compatibility
- DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
- Analogue Output Number
- 2
- Minimum Switching Current
- relay output R1, R2, R3 5 mA 24 V DC
- Isolation
- between power and control terminals
- Brake Chopper Integrated
- true
- Type Of Polarization
- no impedance Modbus serial
- Discrete Input Type
- DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
- Supply
- external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Power Dissipation In Wforced convection 376 W 500 V 4 kHz || natural convection 124 W 500 V 4 kHz
Discrete Output Typelogic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
4 Quadrant Operation Possibletrue
Local Signallinglocal diagnostic 3 LED mono/dual colour) || presence of voltage 1 LED red) || embedded communication status 3 LED dual colour) || communication module status 4 LED dual colour)
Relative Symmetric Network Frequency Tolerance5 %
With Safety Function Safe Direction (Sdi)false
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
Motor Slip Compensationcan be suppressed || adjustable || not available in permanent magnet motor law || automatic whatever the load
With Safety Function Safe Position (Sp)false
Method Of Accessslave Modbus TCP
With Safety Function Safe Operating Stop (Sos)false
Discrete Input Number10
Number Of Addresses1-247 Modbus serial
With Safety Function Safe Stop 1 (Ss1)true
Transmission Rate10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s
Analogue Input TypeAI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Electrical Connectioncontrol screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 6...10 mm² AWG 10...AWG 8 || DC bus screw terminal 6...10 mm² AWG 10...AWG 8 || line side screw terminal 6...10 mm² AWG 10...AWG 8
Height420 mm
Maximum Output Voltage690.0 V
Transmission FrameRTU
Relay Output Number3
Data Format8 bits, configurable odd, even or no parity
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Connector Type2 RJ45 || 1 RJ45
Physical InterfaceEthernet || 2-wire RS 485
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
With Safety Function Safe Programmable Logicfalse
Quantity Per Set1
Braking To Standstillby DC injection
Protection Typethermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
With Safety Function Safely Limited Speed (Sls)true
Specifications
- Prospective Line Isc
- 70 kA
- Product Destination
- asynchronous motors || synchronous motors
- Network Number Of Phases
- 3 phases
- Variant
- standard version || with braking chopper
- Apparent Power
- 27.5 kVA 690 V normal duty) || 22.9 kVA 690 V heavy duty)
- Switching Frequency
- 2...8 kHz adjustable || 4...8 kHz with derating factor
- Communication Port Protocol
- Modbus TCP || Modbus serial || EtherNet/IP
- Option Card
- slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module CANopen SUB-D 9 || slot A communication module CANopen screw terminals || slot A/slot B/slot C digital and analog I/O extension module || slot A/slot B/slot C output relay extension module || slot B 5/12 V digital encoder interface module || slot B analog encoder interface module || slot B resolver encoder interface module || communication module Ethernet Powerlink
- Maximum Output Frequency
- 599 Hz
- Motor Power Kw
- 15.0 kW normal duty || 11.0 kW heavy duty
- Mounting Mode
- wall mount
- Continuous Output Current
- 18 A 4 kHz heavy duty || 24 A 4 kHz normal duty
- Emc Filter
- integrated || with EMC plate option
- Synchronous Motor Control Profile
- permanent magnet motor || synchronous reluctance motor
Network Frequency50...60 Hz
Line Current23.1 A 500 V normal duty) || 18.4 A 500 V heavy duty) || 23.0 A 690 V normal duty) || 19.2 A 690 V heavy duty)
Asynchronous Motor Control Profileoptimized torque mode || constant torque standard || variable torque standard
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP21
Maximum Transient Current27 A 60 s heavy duty) || 28.8 A 60 s normal duty)
Product Specific Applicationprocess for industrial
Degree Of ProtectionUL type 1
Range Of ProductAltivar Process ATV900
[Us] Rated Supply Voltage500...690 V - 15...10 %
Discrete Input Logic16 preset speeds
Nominal Switching Frequency4 kHz
Device Applicationindustrial application
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1704001EN
- Circularity Profile
- ENVEOLI1704001EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
