Killark

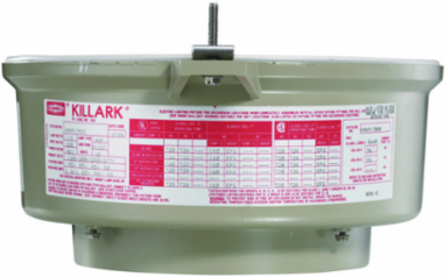

Killark VE4Q6432E30 Emergency Compact Fluorescent High Bay Light 64W/32W, IP66, 4800 Lumens

Emergency Compact Fluorescent High Bay Light 64W/32W, IP66, 4800 Lumens
  • MPN: VE4Q6432E30
  • UPC: 783936079837
  • PPN: HBL-VE4Q6432E30

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

VE4 64W Normal/32W Emergency, 120/277V CFL Quad-Pin Class I Div. 2

Features

  • Quad-Pin triple-tube long-life compact fluorescent lamps included
  • World Voltage 120-277VAC 50-60 Hz
  • LED charging indicator light visible through lens
  • Prewired terminal block for easy power connection
  • Two lamp models include two independent redundant systems
  • Six mounting splice box types - Pendant, Ceiling, Wall bracket, Cone Top, 25° Angle Stanchion, Straight Stanchion.
  • Normally shipped as components for fast delivery or may be ordered factory assembled.
  • Options for Fuses and Quick Disconnect
  • The VE4Q Series Emergency Compact Fluorescent High bay luminaires are designed for easy installation in high bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments.

Specifications

Specifications

Country of Origin
United States
IP Rating
IP66
Optic Type
Luminaire Only
Finish Type
Powder Epoxy Paint
Lamp Type
Quad Pin
Wattage
64 W
Class Code
D20
Freight Class Code
06316009
Image Actual Or Representative
A
Sub Class Code
D20D202
Lumens Per Watt
75
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divisions 1 & 2
Lumens4800
Voltage Rating120-277 VAC
Frequency Rating50/60 Hz
Mounting TypeLuminaire Only
ARRA CompliantContact Manufacturer
Description - InvoiceVE4 EMRG CFL QUAD-P 64N32E 120/277V C1D2
Harmonization Code9405416000
MSDS FlagNo
Lumen Range2,001-5,000 lm
Light SourceCompact Fluorescent
SeriesVE4Q Series
Carton - SCC-14 Next Lower Level Sub Pack00783936079837

Certifications

EU RoHS Indicator
Contact Manufacturer
