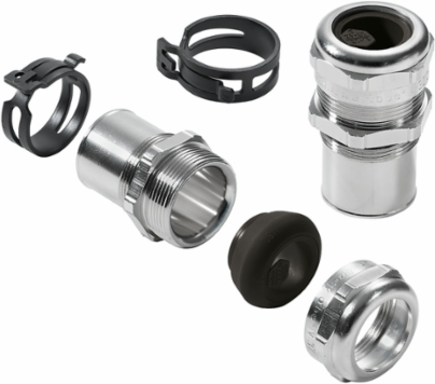

Weidmuller 1463730000 VGM32-MS68 EMC 15-25SET
- MPN: 1463730000
- PPN: WDM-1463730000
CAD
$108.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VGM32-MS68 EMC 15-25SET
Documentation & Downloads
Specifications
General Data
| Cable diameter, max. | 25 mm |
|---|---|
| Cable glands | M 32, EMV |
| Sealing material | T80s |
| Cable diameter, min. | 15 mm |
|---|---|
| Material | Brass, nickel-plated |
| Type of sealing | Rubber ring |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 66.5 mm |
|---|---|
| Net weight | 154 g |
| Length (inches) | 2.618 inch |
|---|
General Descriptions
| Protection degree | IP68 |
|---|
Material
| Material | Brass, nickel-plated |
|---|
Classifications
| ETIM 6.0 | EC000441 |
|---|---|
| eClass 9.0 | 27-14-44-32 |
| eClass 10.0 | 27-14-44-32 |
| ETIM 7.0 | EC000441 |
|---|---|
| eClass 9.1 | 27-14-44-32 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Design
| Product type | Cable glands, Shield clip |
|---|---|
| AF size | 36 mm |
| Cable diameter, max. | 25 mm |
|---|
Temperatures
| Limit temperature | -40 °C ... 130 °C |
|---|
