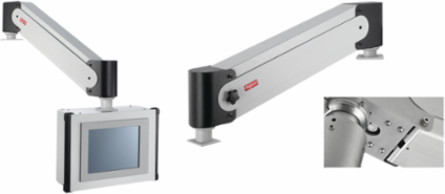

nVent Hoffman VHD26 Syspend VHD-Motion Arm Type 4, 10.18x30.65x4.86, Lt Gray, Steel
- MPN: VHD26
- UPC: 783510185121
- PPN: HOF-VHD26
- UNSPSC: 39121325
CAD
$4382.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
A vertical heavy-duty pendant arm for repositioning HMI enclosure in industrial environments. This Syspend VHD-Motion Arm Type 4, VHD26 item measures 10.18x30.65x4.86 inch with a material of Steel colored Lt Gray.
Features
- 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
- 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
- Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
- Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
- Tension adjustment at front of the arm provides additional fine-tuning of lifting force
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
- Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
- Optional floorpost available
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 779
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Arm Length
- 25
- Sub Brand
- Syspend
- Size
- 10.18x30.65x4.86 in
Height (H)259
Depth (D)123
Product FamilySyspend
ColorLight Gray
Load Capacity20
Weight45
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
