nVent Hoffman VHDS26 Syspend VHDS-Motion Arm Type 4X, 10.18x30.65x4.86, Brushed, SS304
- MPN: VHDS26
- UPC: 783510185145
- PPN: HOF-VHDS26
- UNSPSC: 39121325
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

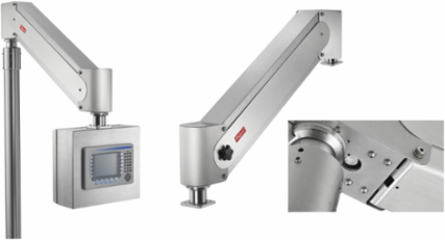

A vertical heavy-duty pendant arm for repositioning HMI enclosure in washdown environments. This Syspend VHDS-Motion Arm Type 4X, VHDS26 item measures 10.18x30.65x4.86 inch with a material of SS304 finish Brushed.
Features
- Corrosion resistant stainless steel housing with provisions for water drainage from arm
- 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
- 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
- Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
- Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
- Tension adjustment at front of the arm provides additional fine-tuning of lifting force
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.25-in. internal cable pathway maintains Type 4, 4X and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30 degree increments
- Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
- Optional floorpost available
- Adapter is available to attach the arm to Syspend Sanitary HMI enclosure quickly
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 779
- Protection Rating
- NEMA Type 12
- Finish
- Brushed
- Weight
- 46.3
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)259
Depth (D)123
Product FamilySyspend
Load Capacity20
Sub BrandSyspend
Size10.18x30.65x4.86 in
